This is an JSS715P series AC servo motor and drive kit consisting of a 400W servo motor and a single-phase 220V servo drive that supports Pulse communication. With the built-in 17-bit multi-turn magnet absolute encoder, the servo motor provides excellent servo control performance.
This servo motor kit is easy to connect and use, with serial commissioning cable to improve commissioning efficiency. Have the following characteristics:
Excellent performance
 |
|
 |
|
 |
|

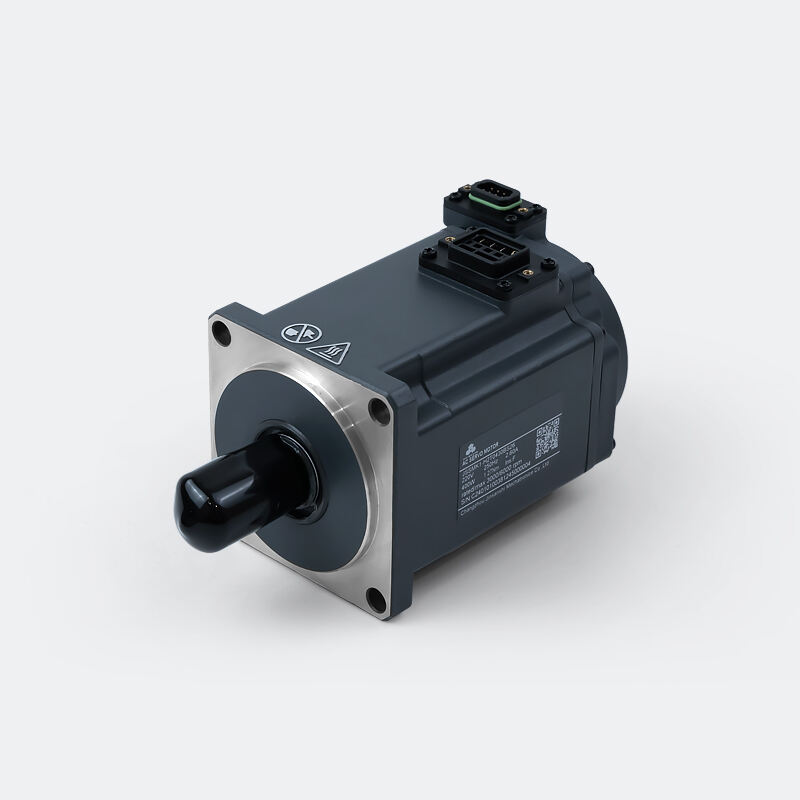

Servo Motor Specification
Frame Size (mm) |
60 x 60 |
Rated Voltage (VAC) |
220 |
Rated Power (W) |
400 |
Rated Torque (N.m) |
1.27 |
Peak Torque (N.m) |
4.45 |
Rated Speed (rpm) |
3000 |
Peak Speed (rpm) |
6000 |
Rated Current (A) |
2.51 |
Peak Current (A) |
8.78 |
With Brake |
No |
Encoder |
17-bit absolute encoder |
Shaft diameter (mm) |
14 |
Rotor inertia (10-4·kg·m2) |
0.59 |

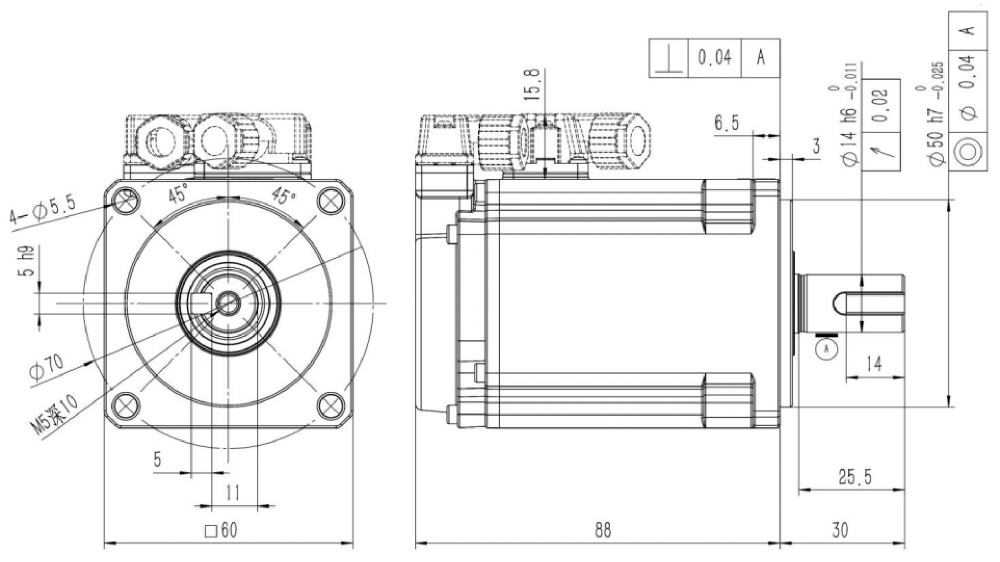

Dimensions (unit=mm)
 |

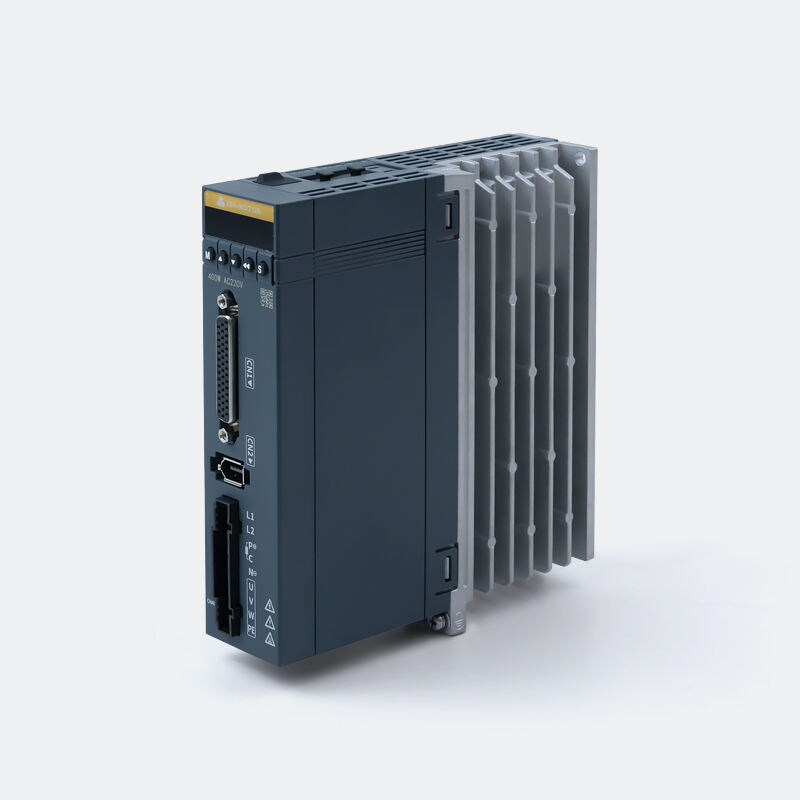

Servo Drive Specification
Rated voltage (VAC) |
220 |
Phase |
Single-phase |
Power (W) |
400 |
Continuous output current (Arms) |
2.8 |
Maximum output current (Arms) |
10.1 |
Main circuit power supply |
Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz |
Control circuit power supply |
Powered up by the bus, sharing one power supply and rectification part with the main circuit |
Braking capability |
External braking resistor |
Communication |
Pulse |
Speed loop bandwidth |
2kHz |
Encoder |
17-bit absolute encoder |
Dimension |
170*150*40mm |

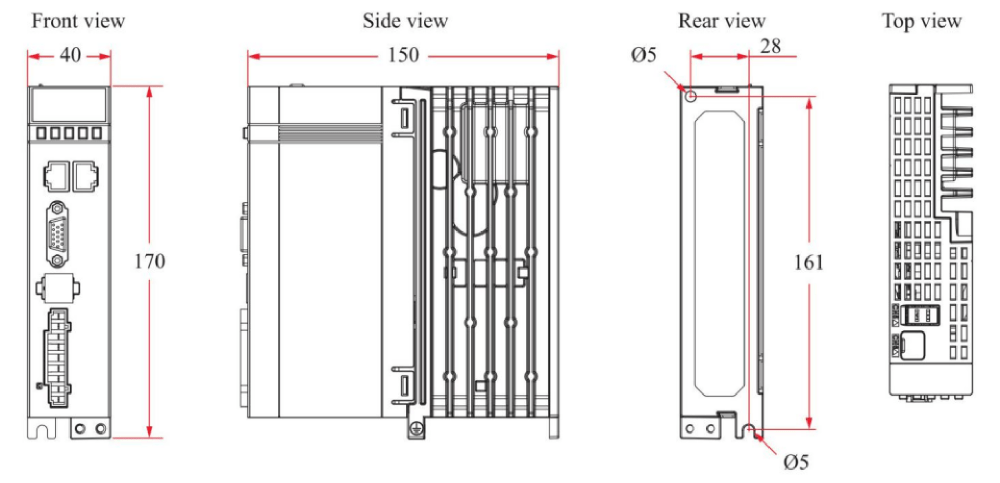

Dimensions (unit=mm)
 |

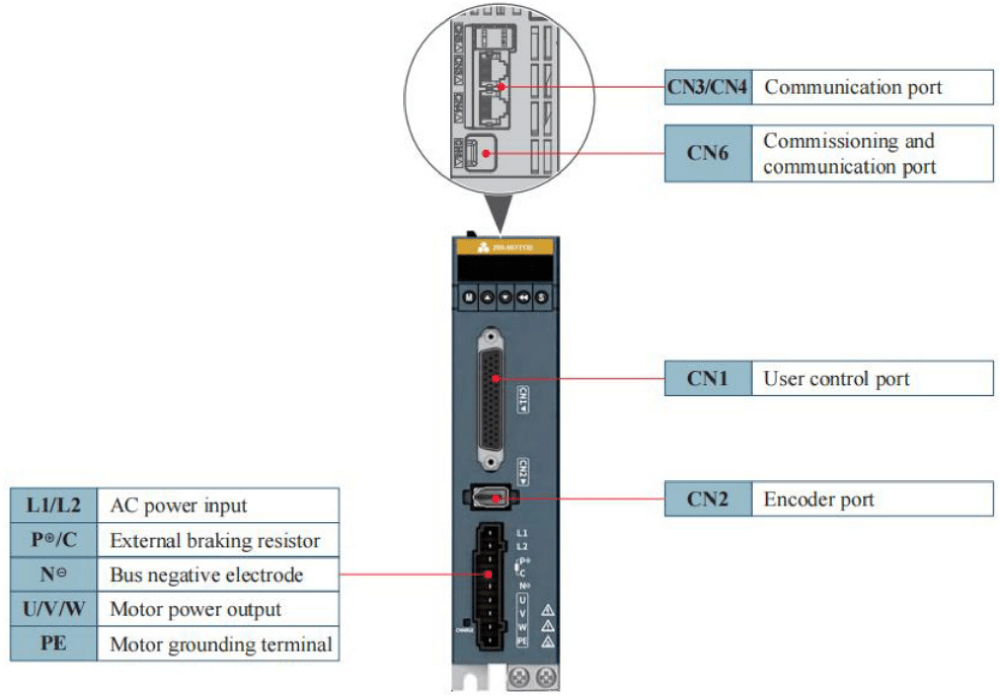

Ports
 |
Applications
Our servo motor and drive system are widely used in Robotics, Industrial Automation, 3C standard applications, Logistics Sorting, Semiconductor Equipment, Medical Devices, AGV, Textile Machinery, Printing Machine, Packaging Machine, Engraving Machine, CNC Machine, etc.
 |
 |
 |

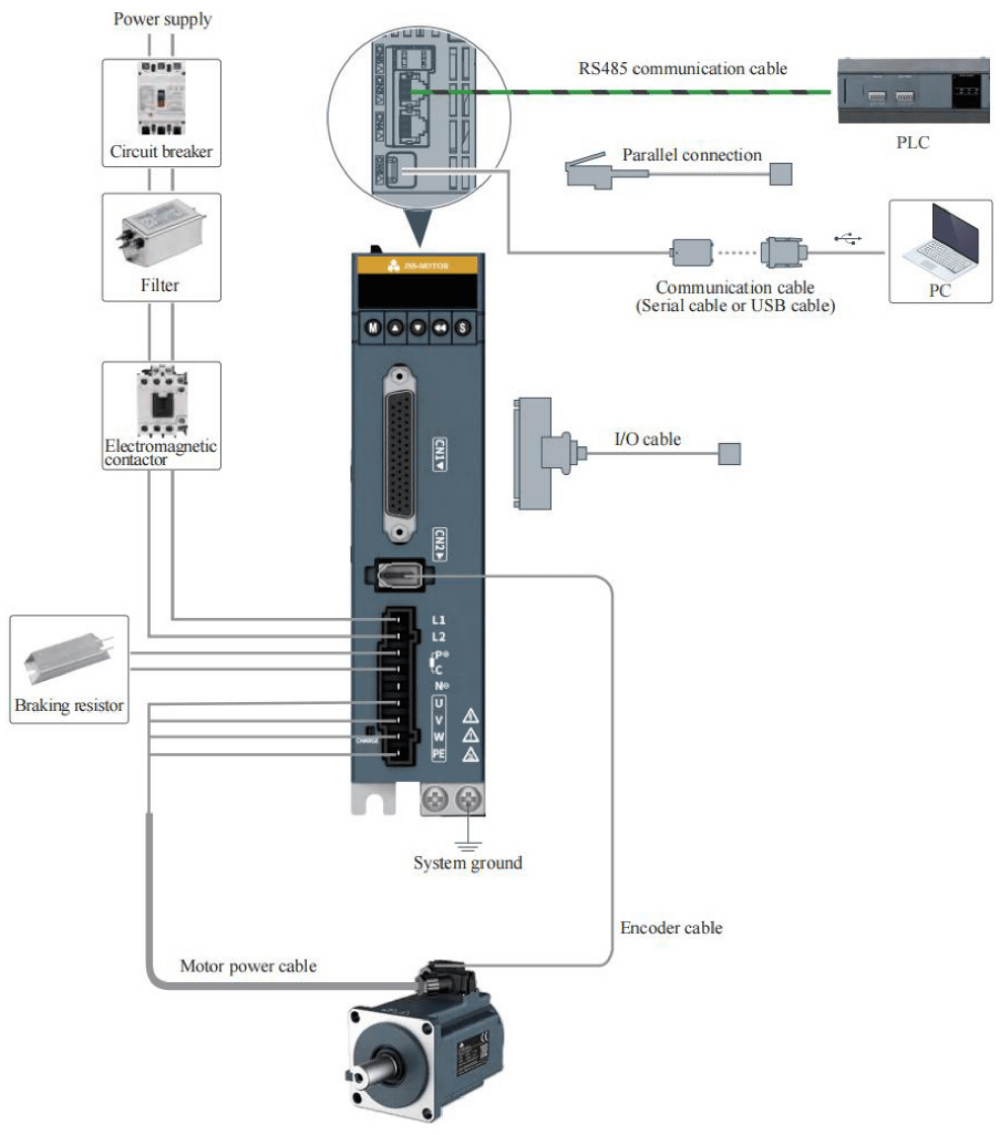

Servo System Topology
 |
Our Services
We offer a comprehensive range of products and services, ensuring a smooth and efficient procurement process for you.
Our R&D team has 12 years of experience, providing customized services and industry-specific solutions to meet the diverse needs of our customers. We also offer ODM and OEM services.
Our seasoned sales team is available 24/7 to promptly address customer needs and offer professional advice and technical assistance.
If necessary, we can provide professional drawing instructions, inspection reports, shipping videos, test reports, etc.
JSS715P Pulse servo motor and drive kit data sheet
Frame Size |
Power |
Voltage |
Rated Speed |
Rated Torque |
Motor Type |
Encoder |
Servo Drive |
40mm |
100W |
220VAC |
3000RPM |
0.32N.m |
JSSMK1-H2T0330BN26 |
17-bit multi-turn magnet absolute encoder |
JSS715P2T1R6 |
60mm |
200W |
220VAC |
3000RPM |
0.64N.m |
JSSMK1-H2T0230BS26 |
JSS715P2T1R6 |
|
400W |
220VAC |
3000RPM |
1.27N.m |
JSSMK1-H2T0430BS26 |
JSS715P2T2R8 |
||
80mm |
750W |
220VAC |
3000RPM |
2.39N.m |
JSSMK1-H2T0830BS26 |
JSS715P2T5R5 |
|
1KW |
220VAC |
3000RPM |
3.18N.m |
JSSMK1-H2T1030BS26-80 |
JSS715P2T7R6 |
||
100mm |
1KW |
220VAC |
3000RPM |
3.18N.m |
JSSMK1-H2T1030BS26 |
JSS715P2T7R6 |
|
1KW |
380VAC |
3000RPM |
3.18N.m |
JSSMK1-H4T1030BS26 |
JSS715P4T5R4 |
||
1.5KW |
220VAC |
3000RPM |
4.9N.m |
JSSMK1-H4T1530BS26 |
JSS715P2T012 |
||
1.5KW |
380VAC |
3000RPM |
4.9N.m |
JSSMK1-H4T1530BS26 |
JSS715P4T5R4 |
||
2KW |
380VAC |
3000RPM |
6.36N.m |
JSSMK1-H4T2030BS26 |
JSS715P4T8R4 |
||
2.5KW |
380VAC |
3000RPM |
7.96N.m |
JSSMK1-H4T2530BS26 |
JSS715P4T8R4 |
||
130mm |
3KW |
380VAC |
3000RPM |
9.6N.m |
JSSMK1-H4T3030BS26 |
JSS715P4T012 |
|
850W |
220VAC |
1500RPM |
5.4N.m |
JSSMK1-H2T0915BS26 |
JSS715P2T7R6 |
||
850W |
380VAC |
1500RPM |
5.4N.m |
JSSMK1-H4T0915BS26 |
JSS715P4T3R5 |
||
1.3kw |
220VAC |
1500RPM |
8.34N.m |
JSSMK1-H2T1315BS26 |
JSS715P2T012 |
||
1.3kW |
380VAC |
1500RPM |
8.34N.m |
JSSMK1-H4T1315BS26 |
JSS715P4T5R4 |
||
1.8kw |
380VAC |
1500RPM |
11.5N.m |
JSSMK1-H4T1815BS26 |
JSS715P4T8R4 |
||
4KW |
380VAC |
3000RPM |
12.7N.m |
JSSMK1-H4T4030BS26 |
JSS715P4T017 |
||
5KW |
380VAC |
3000RPM |
15.9N.m |
JSSMK1-H4T5030BS26 |
JSS715P4T017 |
||
180mm |
2.9KW |
380VAC |
1500RPM |
18.6N.m |
JSSMK1-H4T2915BS26 |
JSS715P4T012 |
|
4.4KW |
380VAC |
1500RPM |
28.4N.m |
JSSMK1-H4T4415BS26 |
JSS715P4T017 |
||
5.5KW |
380VAC |
1500RPM |
35N.m |
JSSMK1-H4T5515BS26 |
JSS715P4T021 |
||
7.5KW |
380VAC |
1500RPM |
48N.m |
JSSMK1-H4T7515BS26 |
JSS715P4T026 |
If you want to know more about our servo motor and drive kit, please click the "Get a quote" button to tell us your requirements.
