The JSS760N series is a fast, reliable, and accurate platform servo drive from JSS-MOTOR covering the most common power range of 0.05 kW to 7.5 kW for general automation. It supports both single-phase and three-phase power supply systems. It features a space-saving design and excellent servo control performance. Working together with the JSSMK1 servo motor, the JSS760N series servo drive can optimize the performance and the ease of use. Compatible with mainstream PLCs from brands such as Beckhof and Omron, the JSS760N series servo drive provides efficient and convenient motion control solutions for various industries.

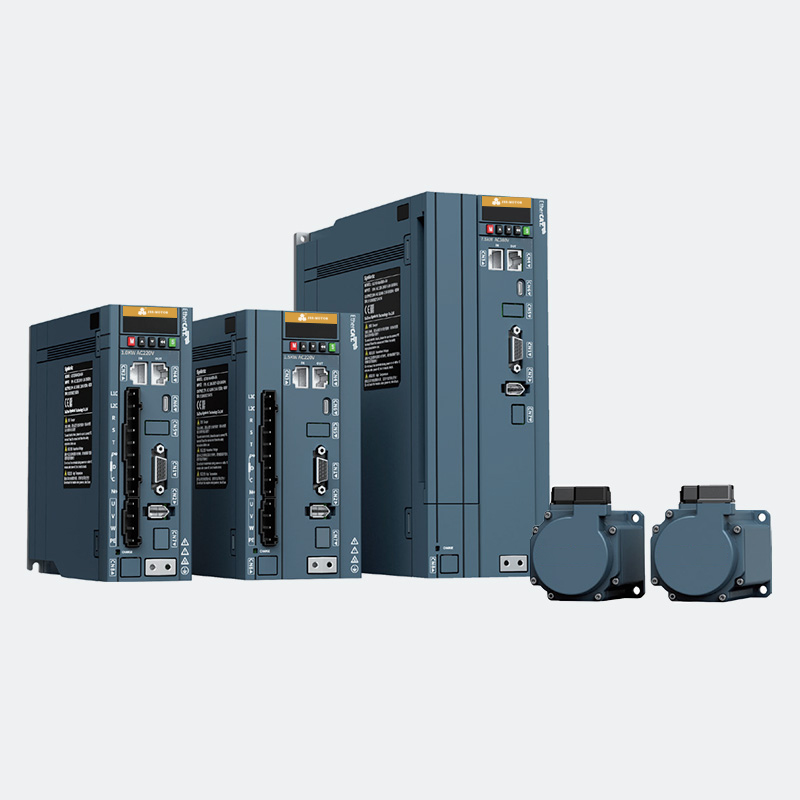

JSS760N 23-bit optical encoder servo motor and Ethercat servo drive
Product Advantage
Excellent performance
1.High response: 3kHz speed loop bandwidth
2.High accuracy: 23-bit absolute encoder
3.High speed: 125μs synchronization period
4.High synchronization: 300 nodes at 120m distance, 15ns synchronization error, ±20ns synchronization jitter
Sophisticated and novel design
1.Integrated communication ports, enhancing wiring efficiency
2.Compact design, making the product be able to be installed in narrow space
3.Easy to connect and use, with serial commissioning cable to improve commissioning efficiency
4.Support to EtherCAT bus servo parameter copy for quick and easy access
Safe and reliable
1.Built-in dynamic brake function
2.Support to the STO safety torque stop function (optional)
3.Optional high-protection model to cope with harsh application environments
| Frame Size | Power | Voltage | Rated Speed | Rated Torque | Motor Type | Encoder | Driver |
| (Ethercat) | |||||||
| 40mm | 100W | 220VAC | 3000RPM | 0.32N.m | JSSMK1-H2T0330BN46 | 23-bit multi-turn optical absolute encoder | JSS760N2T1R6 |
| 60mm | 200W | 220VAC | 3000RPM | 0.64N.m | JSSMK1-H2T0230BS46 | JSS760N2T1R6 | |
| 400W | 220VAC | 3000RPM | 1.27N.m | JSSMK1-H2T0430BS46 | JSS760N2T2R8 | ||
| 80mm | 750W | 220VAC | 3000RPM | 2.39N.m | JSSMK1-H2T0830BS46 | JSS760N2T5R5 | |
| 1KW | 220VAC | 3000RPM | 3.18N.m | JSSMK1-H2T1030BS46-80 | JSS760N2T7R6 | ||
| 100mm | 1KW | 220VAC | 3000RPM | 3.18N.m | JSSMK1-H2T1030BS46 | JSS760N2T7R6 | |
| 1KW | 380VAC | 3000RPM | 3.18N.m | JSSMK1-H4T1030BS46 | JSS760N4T5R4 | ||
| 1.5KW | 220VAC | 3000RPM | 4.9N.m | JSSMK1-H4T1530BS46 | JSS760N2T012 | ||
| 1.5KW | 380VAC | 3000RPM | 4.9N.m | JSSMK1-H4T1530BS46 | JSS760N4T5R4 | ||
| 2KW | 380VAC | 3000RPM | 6.36N.m | JSSMK1-H4T2030BS46 | JSS760N4T8R4 | ||
| 2.5KW | 380VAC | 3000RPM | 7.96N.m | JSSMK1-H4T2530BS46 | JSS760N4T8R4 | ||
| 130mm | 3KW | 380VAC | 3000RPM | 9.6N.m | JSSMK1-H4T3030BS46 | JSS760N4T012 | |
| 850W | 220VAC | 1500RPM | 5.4N.m | JSSMK1-H2T0915BS46 | JSS760N2T7R6 | ||
| 850W | 380VAC | 1500RPM | 5.4N.m | JSSMK1-H4T0915BS46 | JSS760N4T3R5 | ||
| 1.3kw | 220VAC | 1500RPM | 8.34N.m | JSSMK1-H2T1315BS46 | JSS760N2T012 | ||
| 1.3kW | 380VAC | 1500RPM | 8.34N.m | JSSMK1-H4T1315BS46 | JSS760N4T5R4 | ||
| 1.8kw | 380VAC | 1500RPM | 11.5N.m | JSSMK1-H4T1815BS46 | JSS760N4T8R4 | ||
| 4KW | 380VAC | 3000RPM | 12.7N.m | JSSMK1-H4T4030BS46 | JSS760N4T017 | ||
| 5KW | 380VAC | 3000RPM | 15.9N.m | JSSMK1-H4T5030BS46 | JSS760N4T017 | ||
| 180mm | 2.9KW | 380VAC | 1500RPM | 18.6N.m | JSSMK1-H4T2915BS46 | JSS760N4T012 | |
| 4.4KW | 380VAC | 1500RPM | 28.4N.m | JSSMK1-H4T4415BS46 | JSS760N4T017 | ||
| 5.5KW | 380VAC | 1500RPM | 35N.m | JSSMK1-H4T5515BS46 | JSS760N4T021 | ||
| 7.5KW | 380VAC | 1500RPM | 48N.m | JSSMK1-H4T7515BS46 | JSS760N4T026 |
JSS760N Servo Drive Technical Date
1.Rated Data
Single-phase 220V servo drive
Item | SIZE-A | SIZE-B | |
Power | 0.2 kW | 0.4 kW | 0.75 kW |
Drive model JSS760N | 2T1R6 | 2T2R8 | 2T5R5 |
Continuous output current (Arms) | 1.6 | 2.8 | 5.5 |
Maximum output current (Arms) | 5.8 | 10.1 | 16.9 |
Main circuit power supply | Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz | ||
Control circuit power supply | Powered up by the bus, sharing one power supply and rectification part with the main circuit | ||
Braking capability | External braking resistor | Built-in braking resistor | |
Single-phase/Three-phase 220V servo drive
Item | SIZE-C | SIZE-D |
Power | 1.0 kW | 1.5 kW |
Drive model JSS760N | 2T7R6 | 2T012 |
Continuous output current (Arms) | 7.6 | 11.6 |
Maximum output current (Arms) | 23 | 32 |
Main circuit power supply | Single-phase/three-phase 200–240 VAC, –10% to +10%, 50/60 Hz | |
Control circuit power supply | Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz | |
Braking capability | Built-in braking resistor | |
Three-phase 380V servo drive
Item | SIZE-C | SIZE-D | SIZE-E | ||||
Power | 0.85 kW | 1.5 kW | 2.0 kW | 3.0 kW | 5.0 kW | 6.0 kW | 7.5 kW |
Drive model JSS760N | 4T3R5 | 4T5R4 | 4T8R4 | 4T012 | 4T017 | 4T021 | 4T026 |
Continuous output current (Arms) | 3.5 | 5.4 | 8.4 | 11.9 | 16.5 | 20.8 | 25.7 |
Maximum output current (Arms) | 11 | 14 | 20 | 29.8 | 42 | 55 | 65 |
Main circuit power supply | Three-phase 380–440 VAC, –10% to +10%, 50/60 Hz | ||||||
Control circuit power supply | Single-phase 380–440 VAC, –10% to +10%, 50/60 Hz | ||||||
Braking capability | Built-in braking resistor | ||||||
2.Basic Specifications
Item | Specifications |
Control mode | IGBT PWM control, sine wave current drive mode 220 V, 380 V: Single-phase or three-phase full-bridge rectification |
Encoder feedback | 23-bit multi-turn absolute encoder, which can be used as a single-turn absolute encoder in absence of the battery |
Operating temperature | 0°C to +55°C(over 45°C: derate 10% for every additional 5°C) |
Storage temperature | –40°C to +70°C |
Altitude | Up to 2000 m. For altitude above 1000 m, derate 1% for every additional 100 m |
IP rating | IP20 (except for the power terminal IP00) |

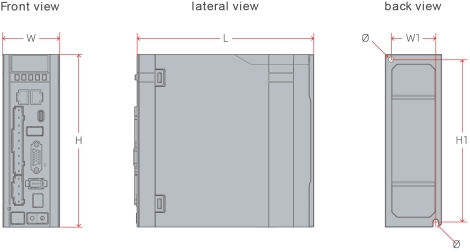

3.JSS760N Servo Drive Sizes (unit: mm)
Note: The diagram shows the profile of JSS760N servo drive using SIZE C model as an example. Please refer to the product size list for detailed dimensions.
| TYPE | DRIVE MODEL | W | H | L | W1 | H1 | Ø |
| JSS760N | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| SIZE A | 2T1R6 | 40 | 170 | 150 | 28 | 161 | 5 |
| 2T2R8 | |||||||
| SIZE B | 2T5R5 | 50 | 170 | 174 | 37 | 161 | 5 |
| SIZE C | 2T7R6 | 55 | 170 | 174 | 44 | 160 | 5 |
| 4T3R5 | |||||||
| 4T5R4 | |||||||
| SIZE D | 2T012 | 80 | 170 | 182 | 71 | 160 | 5 |
| 4T8R4 | |||||||
| 4T012 | |||||||
| SIZE E | 4T017 | 90 | 250 | 230 | 78 | 240.5 | 5 |
| 4T021 | |||||||
| 4T026 |

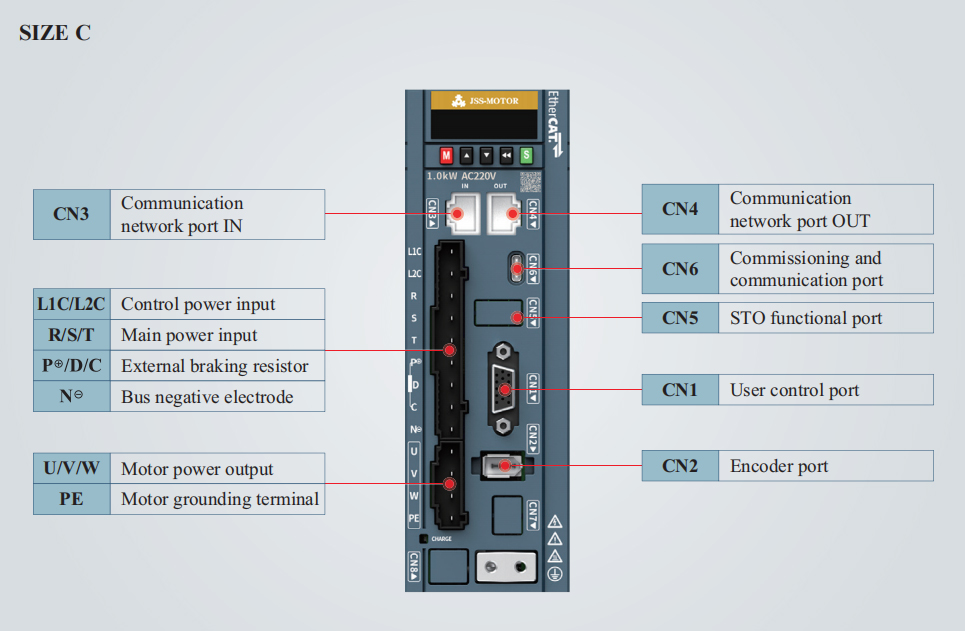

4.JSS760N Port Description
Note: The port shows the profile of JSS760N servo drive using SIZE C model as an example. There are differences in the layout of other servo drives, please refer to the actual product.

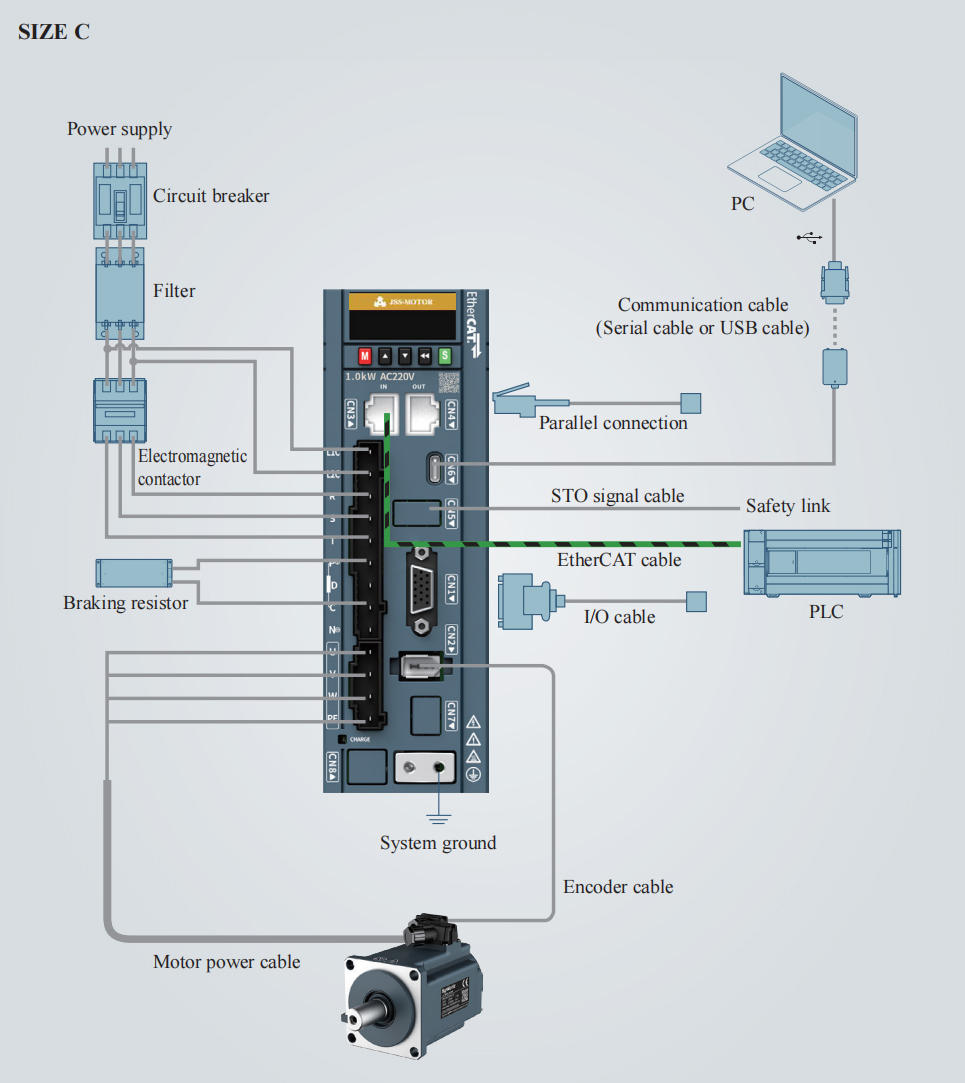

5.JSS760N System Topology
Note: The figure shows the SIZE C model as an example to introduce the JSS760N system topology. Other servo drive have slight differences due to different terminal layouts.
DRIVE & MOTOR CONFIGURATION RELATIONSHIP
| Servo Drive JSS760N | SIZE A | SIZE B | SIZE C | SIZE D | ||
| Single-phase of 220V | Single-phase of 220V | Single-phase / three-phase 220V | Single-phase / Three-phase 220V | |||
| 2T1R6 | 2T2R8 | 2T5R5 | 2T7R6 | 2T012 | ||
| Servo Motor JSSMK1- | 100 W | 400 W | 750 W | 850 W | 1.3 kW | |
| H2T0130BN46 | H2T0430BS46 | H2T0830BS46 | H2T0915BE46 | H2T1315BE46 | ||
| H2T0130BC46 | H2T0915BS46 | H2T1315BS46 | ||||
| 200 W | 1 kW | 1.5 kW | ||||
| H2T0230BS46 | H2T1030BE46-80 | H2T1030BE46 | H2T1530BE46 | |||
| H2T0230BE46 | H2T1030BS46-80 | H2T1030BS46 | H2T1530BS46 | |||
| Servo Drive JSS60N | SIZE C | SIZE D | SIZE E | ||||
| Three-phase of 380 V | Three-phase of 380 V | Three-phase of 380 V | |||||
| 4T3R5 | 4T5R4 | 4T8R4 | 4T012 | 4T017 | 4T021 | 4T026 | |
| Servo Motor JSSMK1- | 850 W | 1.0 kW | 1.8 kW | 2.9 kW | 4.0kW | 5.5 kW | 7.5 kW |
| H4T0915BE46 | H4T1030BE46 | H4T1815BE46 | H4T2915BE46 | H4T4030BE46 | H4T5515BE46 | H4T7515BE46 | |
| H4T1030BS46 | H4T1815BS46 | H4T2915BS46 | H4T4030BS46 | ||||
| 1.3 kW | 2.0 kW | 3.0kW | 4.4 kW | ||||
| H4T1315BE46 | H4T2030BE46 | H4T3030BE46 H4T3030BE46 | H4T4415BE46 | ||||
| H4T1315BS46 | H4T2030BS46 | H4T4415BS46 | |||||
| 1.5 kW | 2.5 kW | 5.0 kW | |||||
| H4T1530BE46 | H4T2530BE46 | H4T5030BE46 | |||||
| H4T1530BS46 | H4T2530BS46 | H4T5030BS46 | |||||
