JSS780N 23-bit optical encoder servo motor and Ethercat servo drive

Description

Changzhou Jinsanshi Mechatronics Co., Ltd.

+86-13401517369

[email protected]

8613401517369

Description

The JSS780N series is a new generation of AC servo drive from JSS MOTOR, with a power range of 50W to 7.5KW and uses EtherCAT commands. The JSSMK1 servo motor used with it has a frame size of 40/60/80/100/130/180mm, provides a variety of inertia and speed options, and can be equipped with different encoders as needed, with better performance.

Power range from 50W to 7.5KW
3.2kHz speed loop bandwidth
23-bit / 26-bit absolute encoder
Built-in dynamic brake function
Support to the STO safety torque stop function (optional)

Features

Excellent performance

	High response: 3.2kHz speed loop bandwidth High accuracy: 23-bit / 26-bit absolute encoder High efficiency: High dynamics and high precision for higher productivity
	Built-in dynamic brake function Support to the STO safety torque stop function (optional) High-quality motor bearings extend service life The drive can operate stably in harsh environments Passed CE certification to meet equipment export requirements
	Compact design to meet the installation requirements of demanding spaces Easy to connect and use, using USB cable to improve debugging efficiency

JSS780N Servo Drive Technical Data

Rated Data

Single-phase/Three-phase 220V servo drive

Item	SIZE-C				SIZE-D
Power	0.2 kW	0.4 kW	0.75 kW	1.0 kW	1.5 kW
Drive model JSS780N	2T1R6	2T2R8	2T5R5	2T7R6	2T012
Continuous output current (Arms)	1.6	2.8	5.5	7.6	12
Maximum output current (Arms)	5.8	10.1	16.9	23	32
Main circuit power supply	Single-phase / Three-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Braking capability	External braking				Built-in braking

Three-phase 380V servo drive

Item	SIZE-C		SIZE-D		SIZE-E
Power	0.85 kW	1.5 kW	2.0 kW	3.0 kW	5.0 kW	6.0 kW	7.5 kW
Drive model JSS780N	4T3R5	4T5R4	4T8R4	4T012	4T017	4T021	4T026
Continuous output current (Arms)	3.5	5.4	8.4	12	17	21	26
Maximum output current (Arms)	11	14	20	29.8	41.3	52.1	64.3
Main circuit power supply	Three-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Braking capability	Built-in braking resistor

JSS780N Servo Drive Sizes (unit: mm)

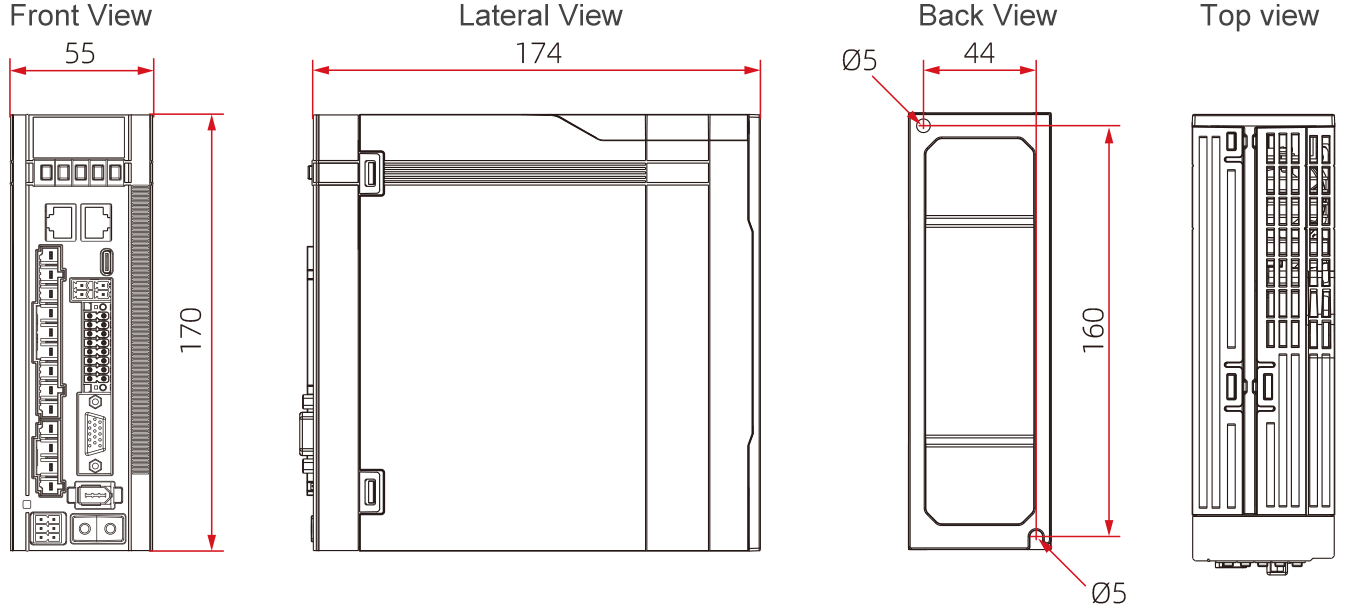

Size C

JSS780N servo drive dimensions-SIZE-C.png

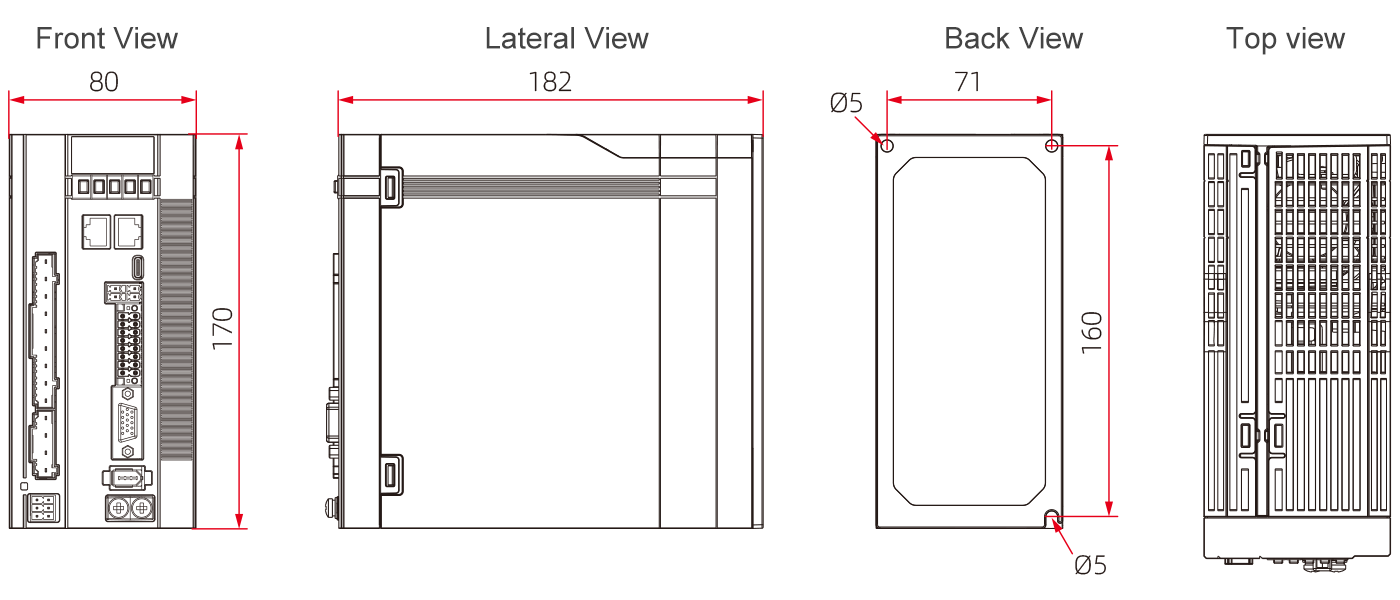

Size D

JSS780N servo drive dimensions-SIZE-D.png

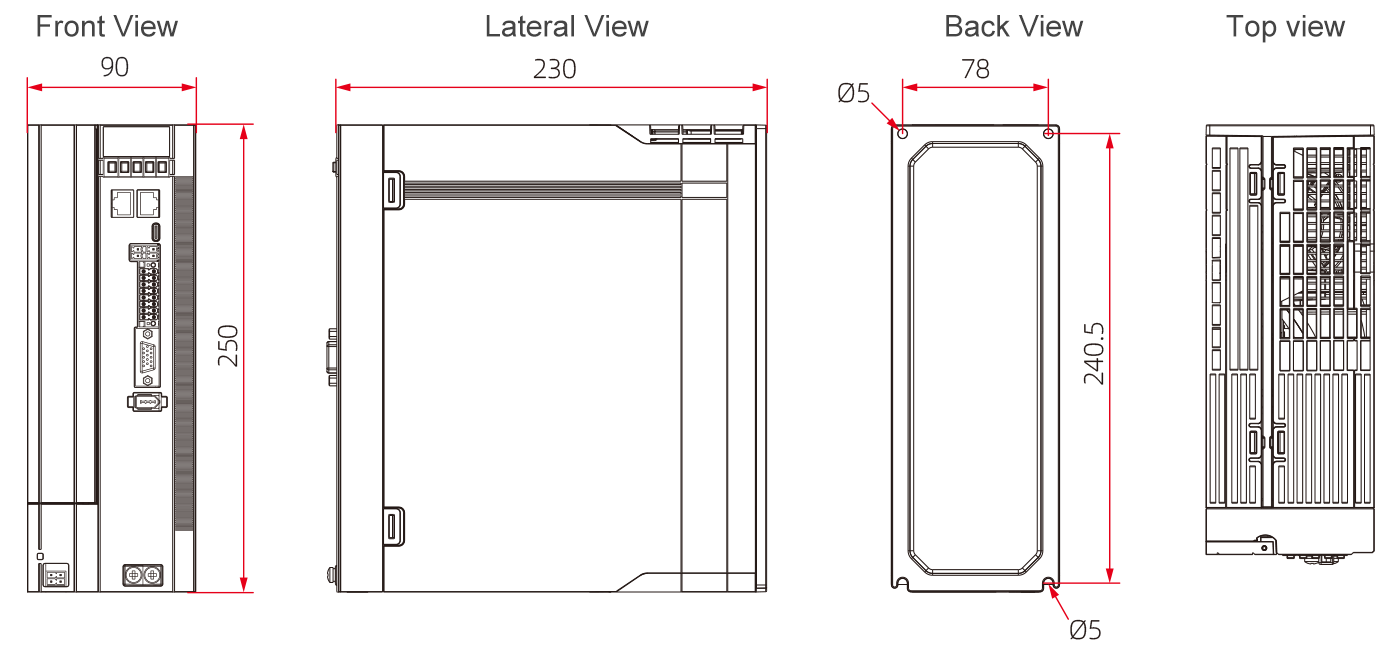

Size E

JSS780N servo drive dimensions-SIZE-E.png

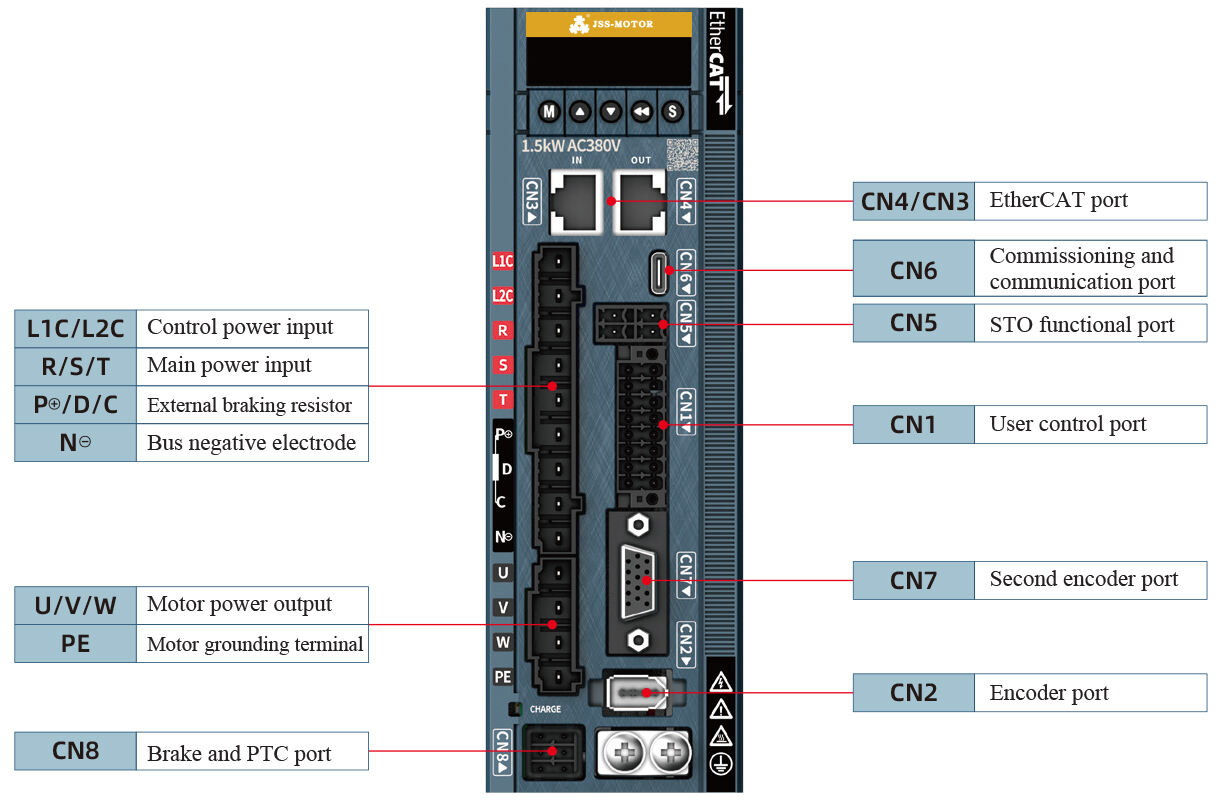

JSS780N Port Description

Note: Take SIZE C model as an example to introduce the distribution of ports. If there are differences in the layout of other models, please take the physical object as the standard.

JSS780N servo drive SIZE C-port.jpg

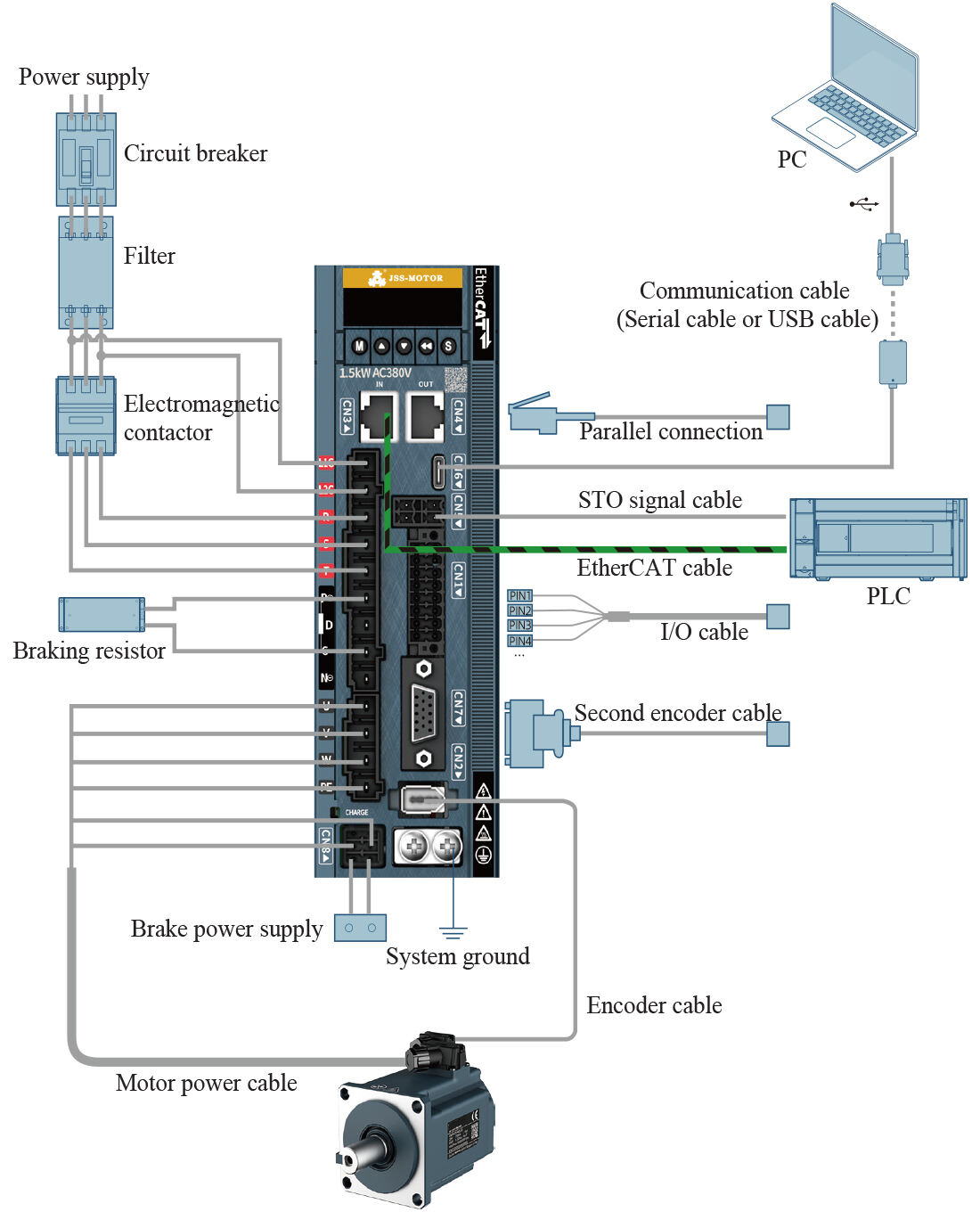

JSS780N System Topology

Note: Take SIZE C model as an example to introduce the distribution of system topology. If there are differences in the layout of other models, please take the physical object as the standard.

JSS780N servo drive SIZE C-System Topology.jpg

Supporting relationship between the drive and motor

220V

	SIZE C
Servo drive JSS780N-	Single-phase / Three-phase 220V
	2T1R6	2T2R8	2T5R5
Servo motor JSSMK1-	100W	400W	750W
	H2T0130BN36 H2T0130BN46 H2T0130BC36 H2T0130BC46	H2T0430BS36 H2T0430BS46 H2T0430BE36 H2T0430BE46	H2T0830BS36 H2T0830BS46 H2T0830BE36 H2T0830BE46
	200W
	H2T0230BS36 H2T0230BS46 H2T0230BE36 H2T0230BE46

	SIZE C			SIZE D
Servo drive JSS780N-	Single-phase / Three-phase 220V
	2T7R6		2T012
Servo motor JSSMK1-	850W		1.3kW
	H2T0915BE36 H2T0915BE46 H2T0915BS36 H2T0915BS46		H2T1315BE36 H2T1315BE46 H2T1315BS36 H2T1315BS46
	1kW		1.5kW
	H2T1030BE36-80 H2T1030BE46-80 H2T1030BS36-80 H2T1030BS46-80	H2T1030BE36 H2T1030BE46 H2T1030BS36 H2T1030BS46	H2T1530BE36 H2T1530BE46 H2T1530BS36 H2T1530BS46

380V

	SIZE C		SIZE D
Servo drive JSS780N-	Three-phase 380V
Servo drive JSS780N-	4T3R5	4T5R4	4T8R4	4T012
Servo motor JSSMK1-	850W	1kW	1.8kW	2.9kW
	H4T0915BE36 H4T0915BE46 H4T0915BS36 H4T0915BS46	H4T1030BE36 H4T1030BE46 H4T1030BS36 H4T1030BS46	H4T1815BE36 H4T1815BE46 H4T1815BS36 H4T1815BS46	H4T2915BE36 H4T2915BE46 H4T2915BS36 H4T2915BS46
		1.3kW	2kW	3kW
		H4T1315BE36 H4T1315BE46 H4T1315BS36 H4T1315BS46	H4T2030BE36 H4T2030BE46 H4T2030BS36 H4T2030BS46	H4T3030BE36 H4T3030BE46 H4T3030BS36 H4T3030BS46
		1.5kW	2.5kW
		H4T1530BE36 H4T1530BE46 H4T1530BS36 H4T1530BS46	H4T2530BE36 H4T2530BE46 H4T2530BS36 H4T2530BS46

	SIZE E
Servo drive JSS780N-	Three-phase 380V
	4T017	4T021	4T026
Servo motor JSSMK1-	4kW	5.5kW	7.5kW
	H4T4030BE36 H4T4030BE46 H4T4030BS36 H4T4030BS46	H4T5515BE36 H4T5515BE46 H4T5515BS36 H4T5515BS46	H4T7515BE36 H4T7515BE46 H4T7515BS36 H4T7515BS46
	4.4kW
	H4T4415BE36 H4T4415BE46 H4T4415BS36 H4T4415BS46
	5kW
	H4T5030BE36 H4T5030BE46 H4T5030BS36 H4T5030BS46
