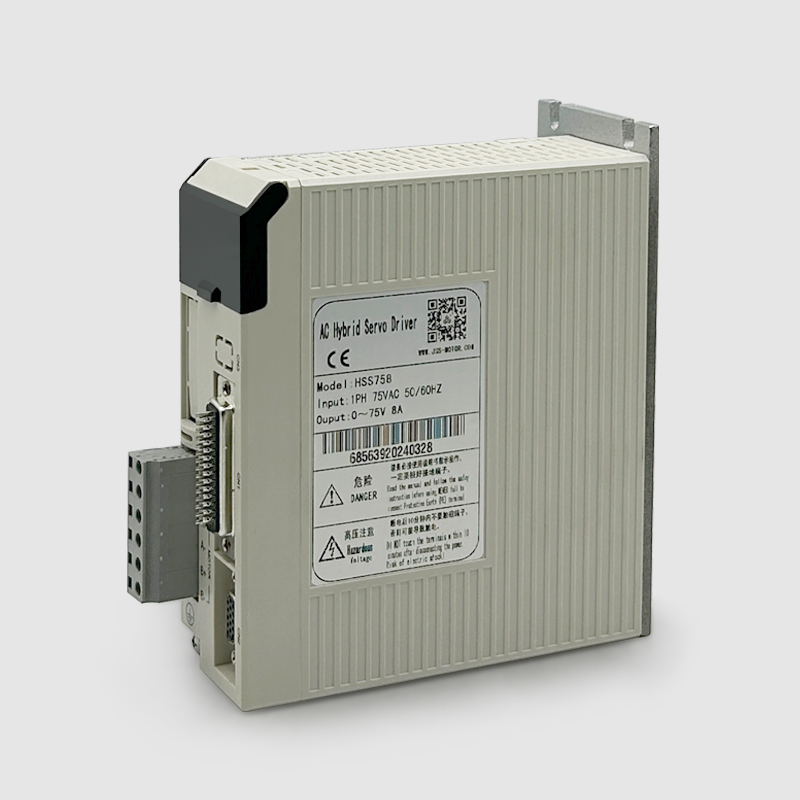

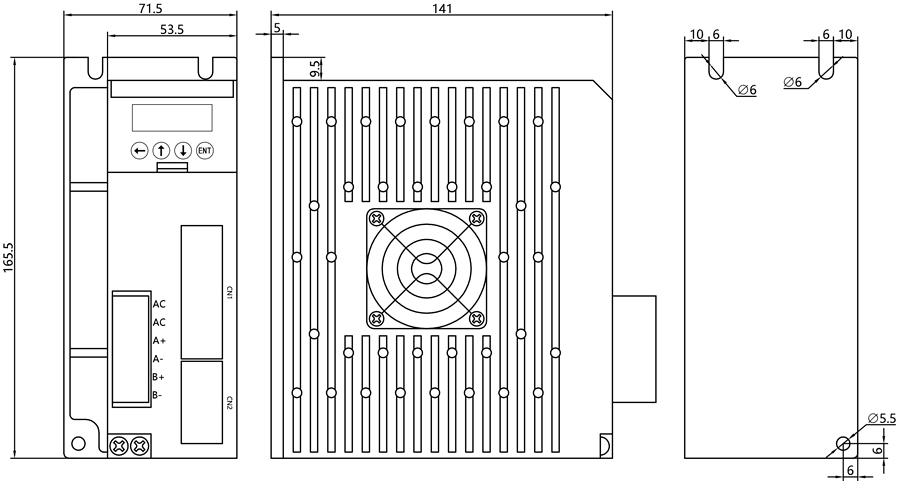

HSS758 2 phase closed loop stepper driver with LED Display

Our HSS758 is a hybrid high power stepper servo driver. It fits the NEMA 34 two-phase stepper motor. Compared to the traditional open-loop stepper driver, this stepper servo driver can completely avoid the stepper motor lost step problem, the high speed torque decrease is extremely lower than the open-loop stepper driver, greatly enhance the performance and torque of high speed motor. The driver current can be automatic controlled based on the load, it effectively restrain the temperature rise of the motor, extend the motor working life. Build-in position and alarm signal output are convenient for host computer to monitor and control the motor running state. The function of over position error alarm ensure the equipment working safely. It is the ideal replacement and upgrade of traditional open loop driver, and it is also with part functions of AC servo system, price is only half of the AC system.

Description

hss758 2 phase closed loop stepper driver with led display-49

+86-13401517369

[email protected]

Description

1.Features

● 32-bit DSP and vector closed-loop control technology

● Without losing step, high accuracy in position

● Improve the motor output torque and working speed

● Variable current control technology, restrain motor temperature rise

● Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter

● Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate

● The ability of zero speed static without vibration

● Adapt to 2-phase NEMA34 hybrid servo motor

● Maximum step-pulse frequency 200KHZ

● Micro step 400-65535 pulse/rev

● Voltage range AC50V~80V

● Over current, over voltage and over position protection

● Six digital tube display, easy to set parameters and monitor the motor running state

2.Electrical Parameter

Input Voltage	AC50V~80V (Typically use 75VAC)
Current output	Peak 8.0A(current variable based on load)
Logic Current Input	7~20mA
Frequency	0~200KHz
Suitable motor	2-phase nema 34 hybrid closed loop stepper motor
Encoder Resolution	1000
Insulation Resistance	≥500MΩ

3.Environment Parameter

Cooling Method	Natural cooling or forced air cooling
Working Environment	Avoid dust, oil fog and corrosive gasses
Working Temperature	0~50℃
Humidity	40~90%RH
Vibration	5.9m/s²Max
Storage Environment	-20℃~65℃

4.Power Interface Ports

Port	Symbol	Definition	Remark
1	AC	Motor power input port	Typically use 75VAC
2	AC	Motor power input port	Typically use 75VAC
3	A+	Motor wiring(Motor wires can not be wrong connected)	Red
4	A-		Green
5	B+		Yellow

5.Control Signal Interface Ports

Port	Symbol	Definition	Remark
3	PUL+	Pulse Signal Input +
4	PUL-	Pulse Signal Input -
5	DIR+	Direction Signal Input +
6	DIR-	Direction Signal Input -
7	ALM+	Alarm Signal Output +
8	ALM-	Alarm Signal Output -
9	PEND+	Position Signal Output +
10	PEND-	Position Signal Output -
11	ENA+	Enable Signal Input +
12	ENA-	Enable Signal Input -
23	OA+	Encoder A Output	Encoder A,B,Z Signal differential drive(26LS31) output, non-isolated output. If the motor only with A,B two channel encoder, then ignore Z channel.
24	OA-	Encoder A Output
25	OB+	Encoder B Output
26	OB-	Encoder B Output
27	OZ+	Encoder Z Output
28	OZ-	Encoder Z Output
29	CZ	Encoder Z open collector output
30	GND	Ground

6.Encoder Signal Input Interface Ports

Port	Symbol	Definition	Remark
1	EA+	Encoder A+ Input	If the motor only with A,B two channel encoder, then ignore Z channel.
11	EA-	Encoder A- Input
2	EB+	Encoder B+ Input
12	EB-	Encoder B- Input
7	EZ+	Encoder Z+ Input
8	EZ-	Encoder Z- Input
13	VCC	+5V
3	GND	Ground
