JSS730F 17-bit absolute encoder servo motor and PROFINET servo drive

The JSS730F series is a new generation of AC servo drive from JSS MOTOR, with a power range of 50W to 7.5KW and uses PROFINET commands. It supports both single-phase and three-phase power supply systems.
The JSSMK1 servo motor used with it has a frame size of 40/60/80/100/130/180mm, provides a variety of inertia and speed options, and can be equipped with different encoders as needed, with better performance.

Power range from 50W to 7.5KW
2kHz speed loop bandwidth
17-bit absolute encoder
Standard PROFIDRIVE protocol, mainstream PROFINET communication PLC
Built-in dynamic brake function

Description

Changzhou Jinsanshi Mechatronics Co., Ltd.

+86-13401517369

[email protected]

8613401517369

Description

Features

Excellent performance

	High response: 2kHz speed loop bandwidth High accuracy: 17-bit absolute encoder High dynamics: DSC mode High adaptability: standard PROFIDRIVE protocol, mainstream PROFINET communication PLC
	Integrated communication ports, enhancing wiring efficiency Compact design, making the product be able to be installed in narrow space Easy to connect and use, with serial or USB commissioning cable to improve commissioning efficiency Support to PROFINET bus servo parameter copy for quick and easy access
	Built-in dynamic brake function Optional high-protection model to cope with harsh application environments

JSS730F Servo Drive Technical Data

Rated Data

Single-phase 220V servo drive

Item	SIZE-A		SIZE-B
Power	0.2 kW	0.4 kW	0.75 kW
Drive model JSS730F	2T1R6	2T2R8	2T5R5
Continuous output current (Arms)	1.6	2.8	5.5
Maximum output current (Arms)	5.8	10.1	16.9
Main circuit power supply	Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Powered up by the bus, sharing one power supply and rectification part with the main circuit
Braking capability	External braking		Built-in braking resistor

Single-phase/Three-phase 220V servo drive

Item	SIZE-C	SIZE-D
Power	1.0 kW	1.5 kW
Drive model JSS730F	2T7R6	2T012
Continuous output current (Arms)	7.6	11.6
Maximum output current (Arms)	23	32
Main circuit power supply	Single-phase/three-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Braking capability	Built-in braking resistor

Three-phase 380V servo drive

Item	SIZE-C		SIZE-D		SIZE-E
Power	0.85 kW	1.5 kW	2.0 kW	3.0 kW	5.0 kW	6.0 kW	7.5 kW
Drive model JSS730F	4T3R5	4T5R4	4T8R4	4T012	4T017	4T021	4T026
Continuous output current (Arms)	3.5	5.4	8.4	11.9	16.5	20.8	25.7
Maximum output current (Arms)	11	14	20	29.8	42	55	65
Main circuit power supply	Three-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Braking capability	Built-in braking resistor

JSS730F Servo Drive Sizes (unit: mm)

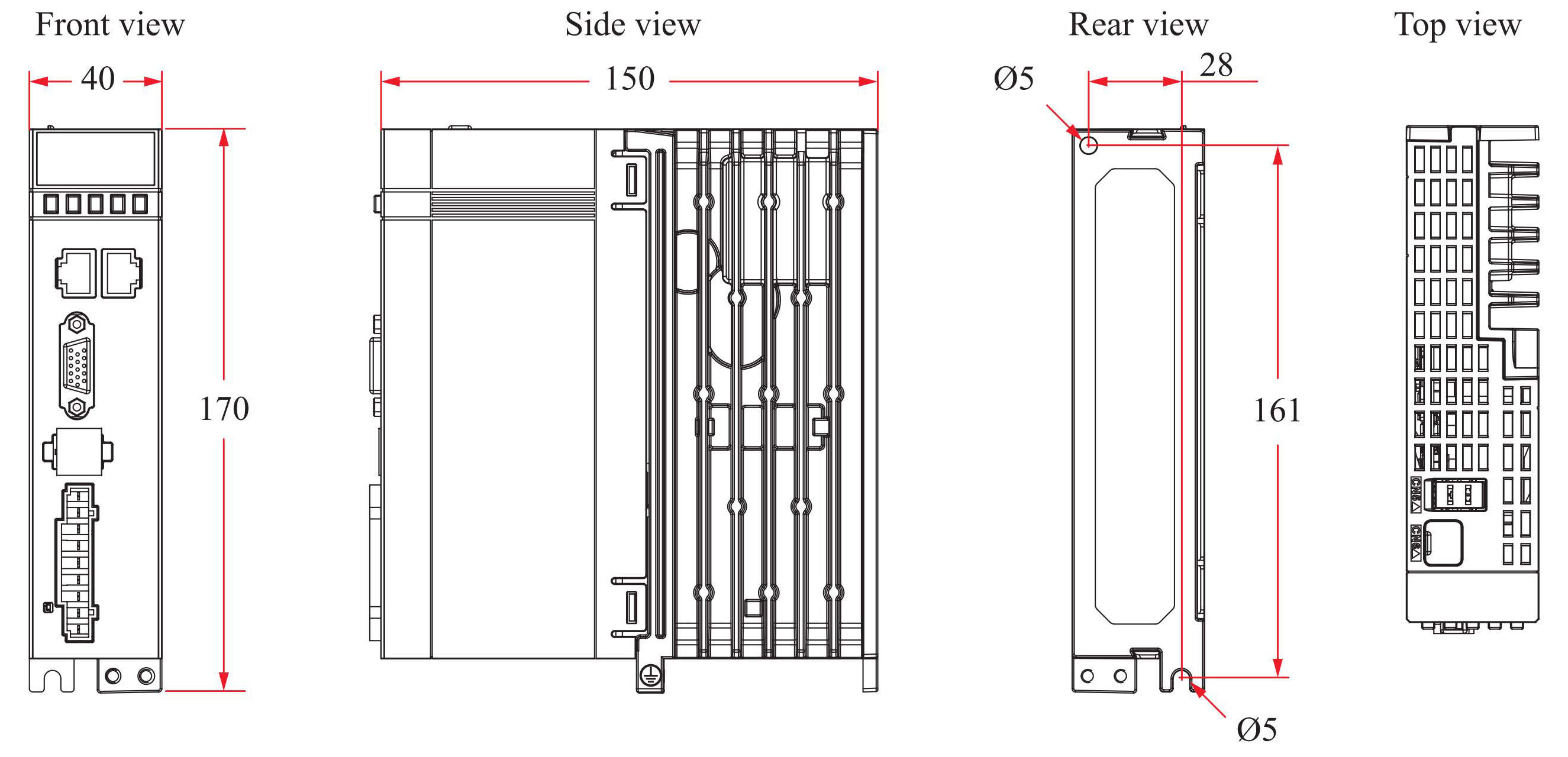

Size A

JSS730F伺服驱动器Sizes_SIZE A.jpg

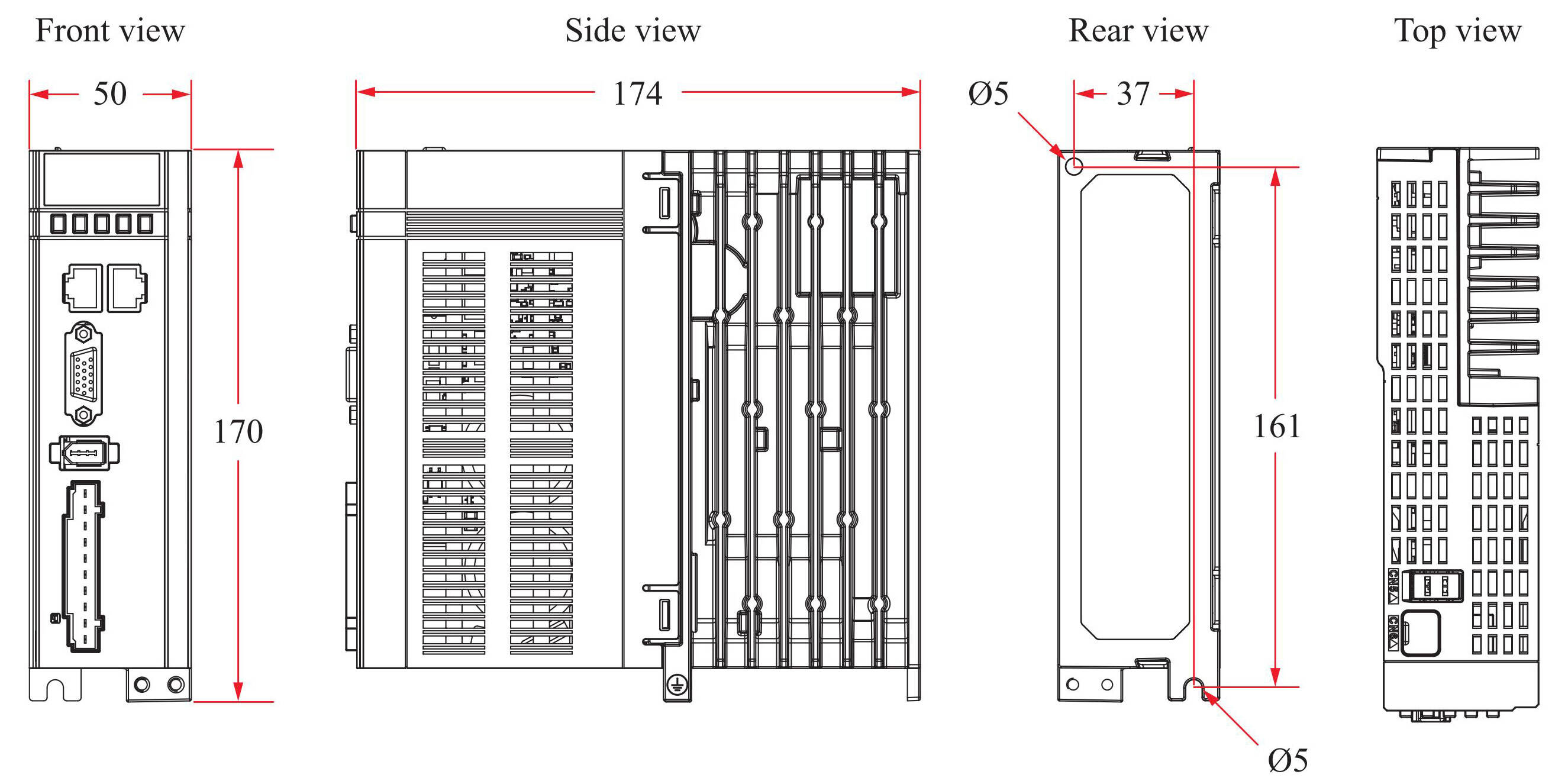

Size B

JSS730F伺服驱动器Sizes_SIZE B.jpg

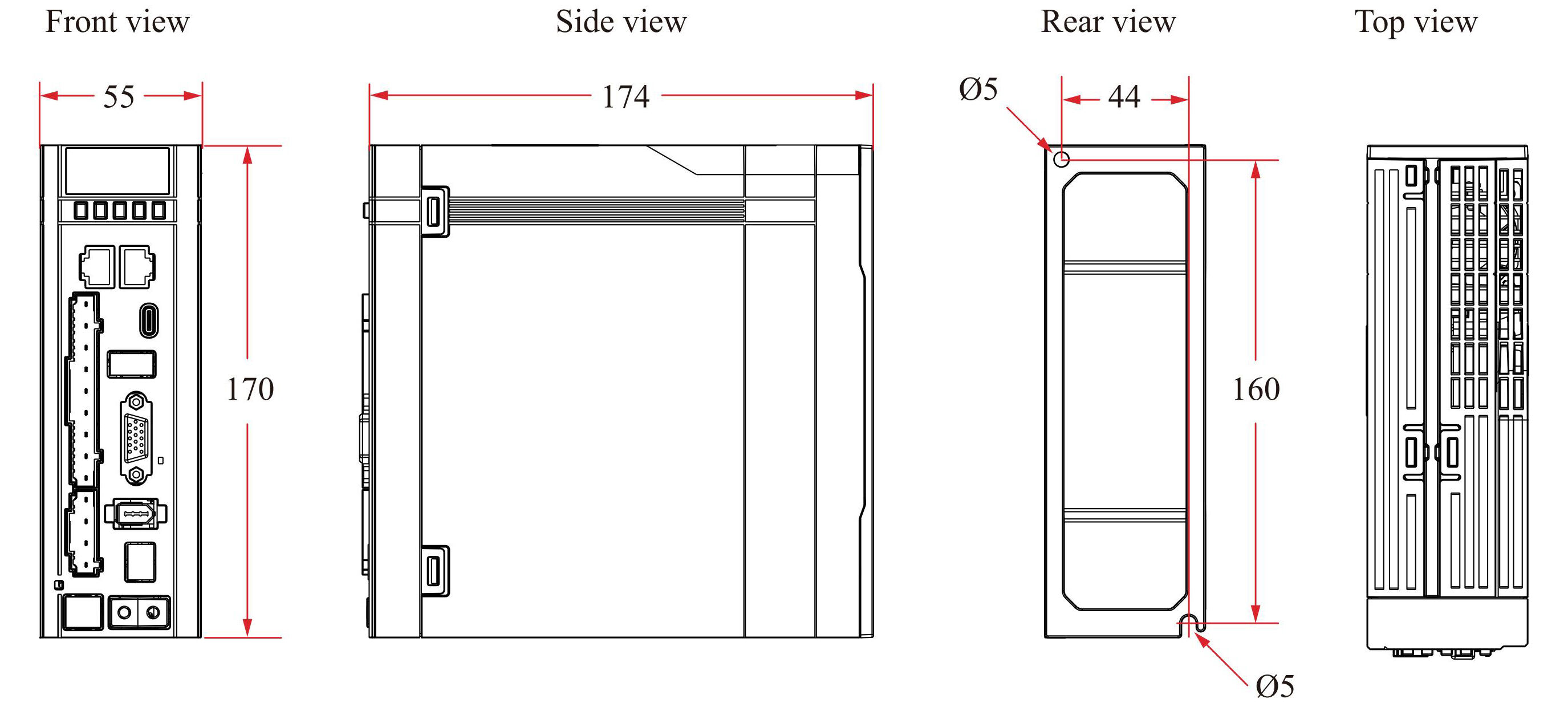

Size C

JSS730F伺服驱动器Sizes_SIZE C.jpg

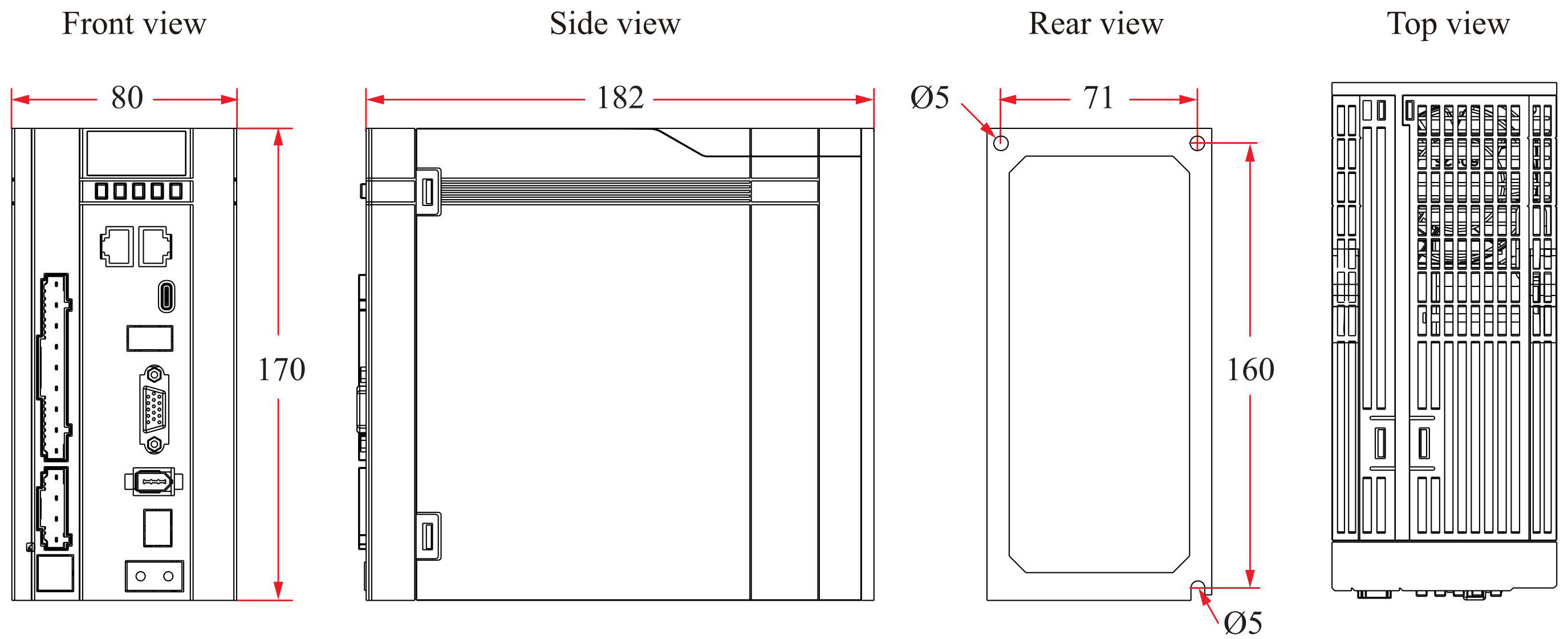

Size D

JSS730F伺服驱动器Sizes_SIZE D.jpg

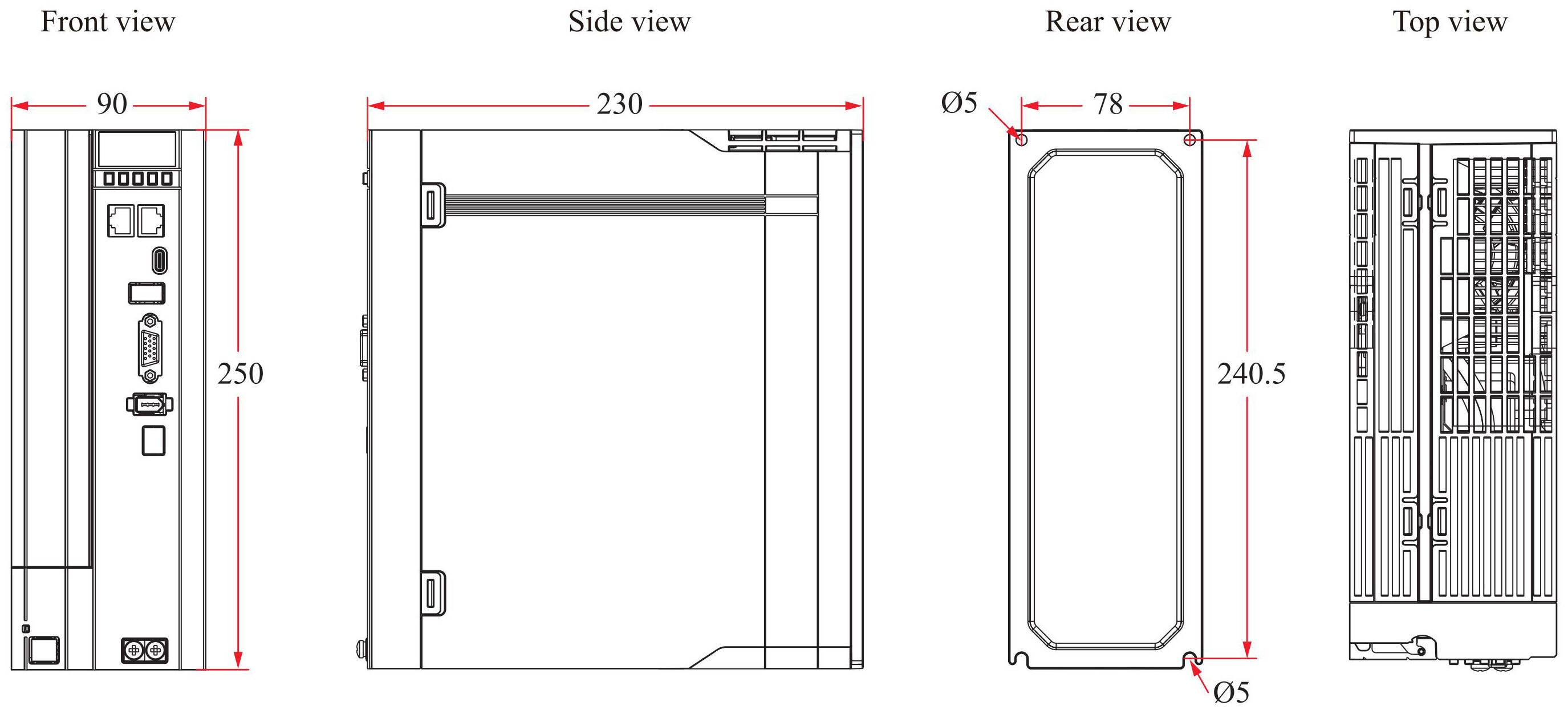

Size E

JSS730F伺服驱动器Sizes_SIZE E.jpg

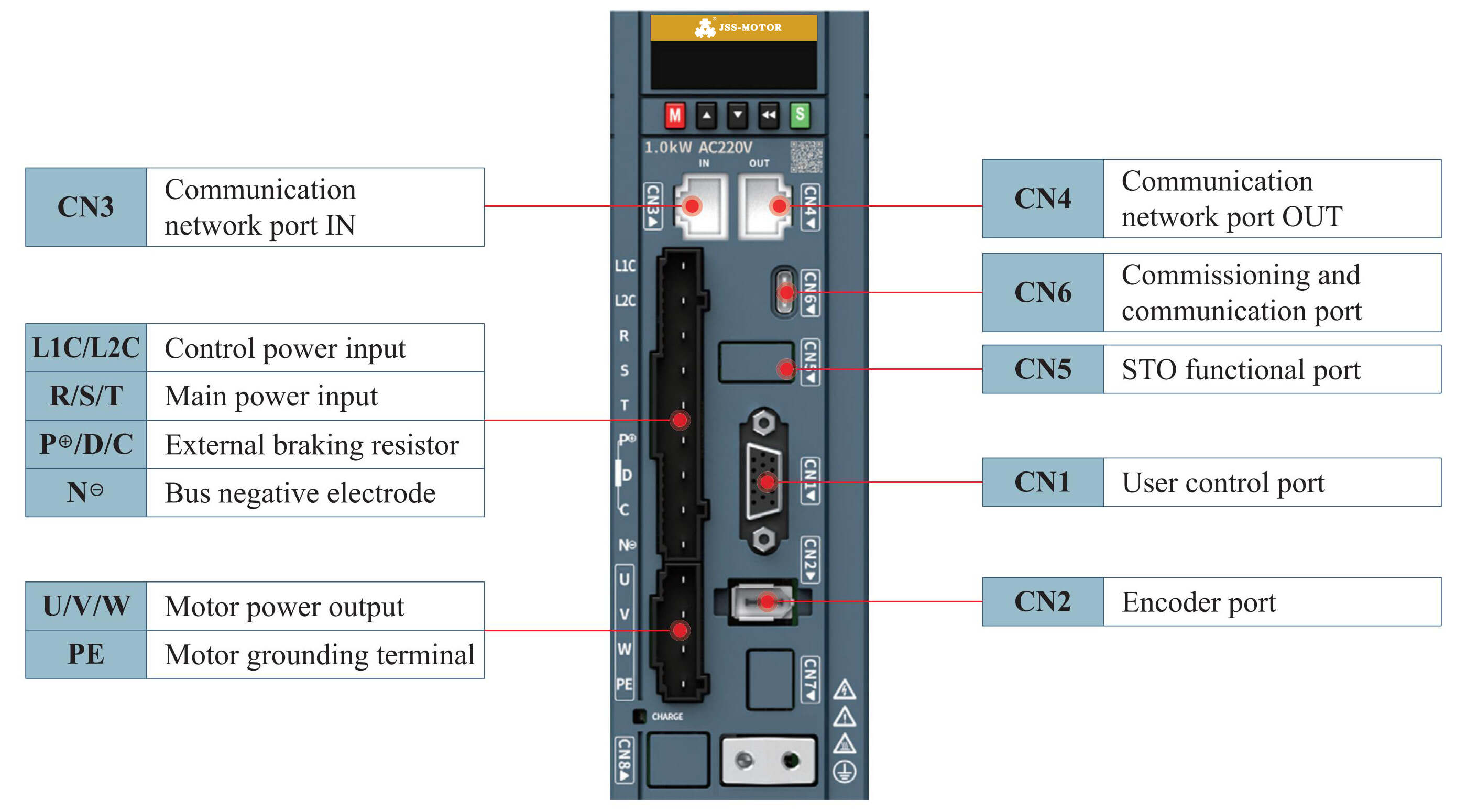

JSS730F Port Description
Note: Take SIZE C model as an example to introduce the distribution of ports. If there are differences in the layout of other models, please take the physical object as the standard.

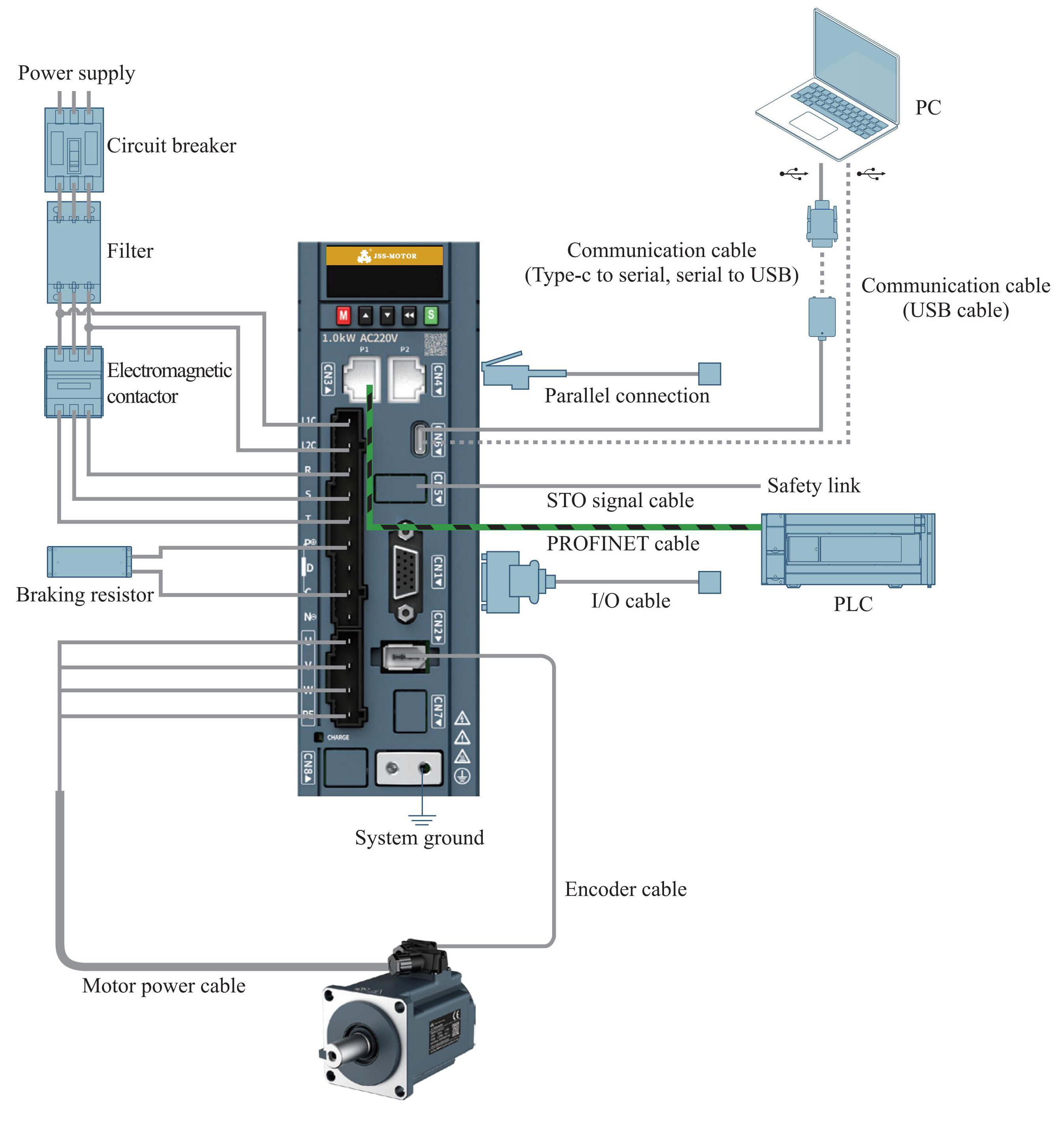

JSS730F System Topology
Note: Take SIZE C model as an example to introduce the distribution of system topology. If there are differences in the layout of other models, please take the physical object as the standard.

JSS730F伺服驱动器System Topology_SIZE-C.jpg

Servo Motor Technical Data

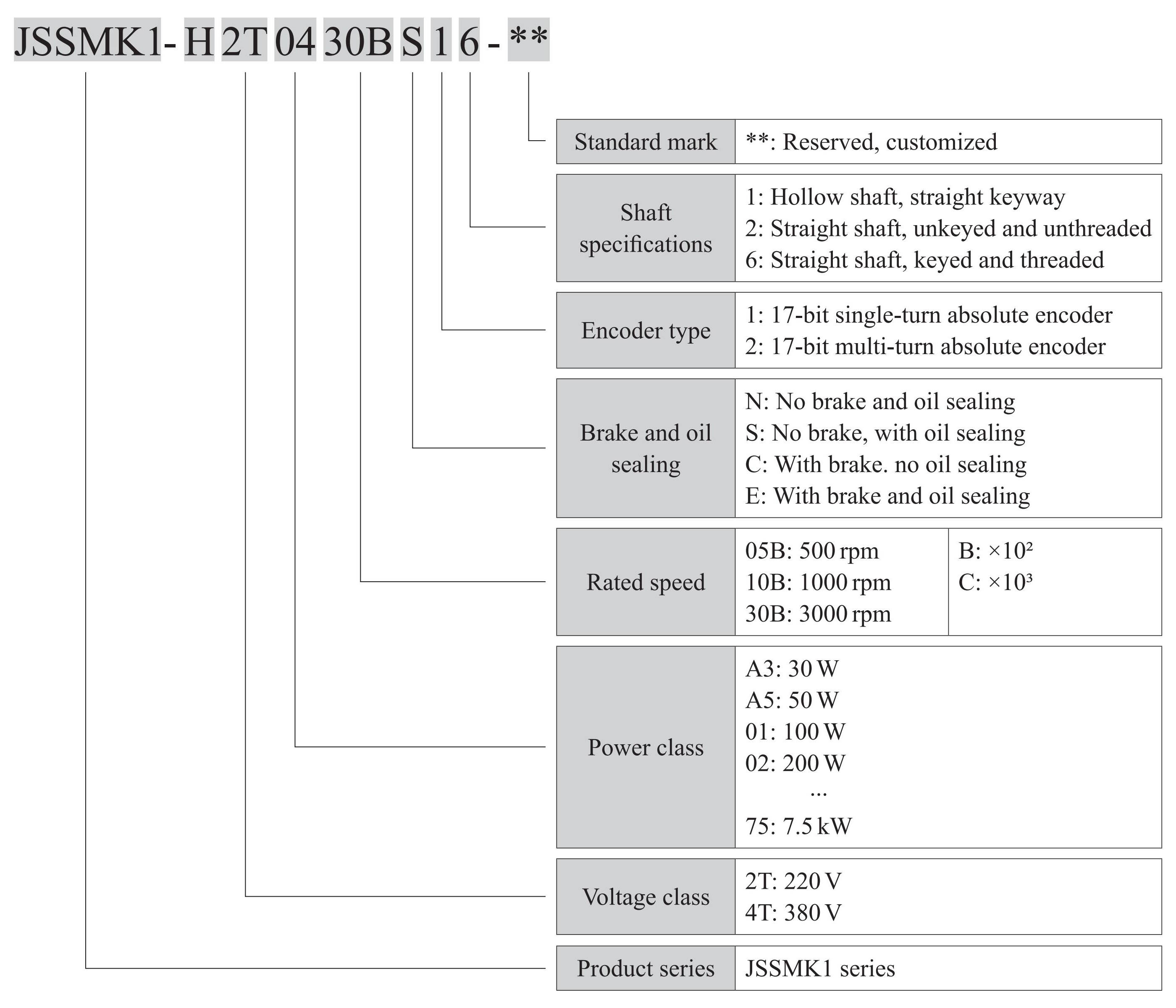

Servo Motor Model Description

Servo Motor Rated Data

Frame Size	Rated Power	Rated Voltage	Rated current	Rated Speed	Rated Torque	Motor Type (JSSMK1-XXXXXXXXXX)	Encoder
40mm	100W	220VAC	1.1A	3000RPM	0.32N.m	H2T0130BN26 H2T0130BC26	17-bit Multi-turn Magnet Absolute Encoder
60mm	200W	220VAC	1.29A	3000RPM	0.64N.m	H2T0230BS26 H2T0230BE26
60mm	400W	220VAC	2.51A	3000RPM	1.27N.m	H2T0430BS26 H2T0430BE26
80mm	750W	220VAC	4.60A	3000RPM	2.39N.m	H2T0830BS26 H2T0830BE26
80mm	1kW	220VAC	6.30A	3000RPM	3.18N.m	H2T1030BS26-80 H2T1030BE26-80
100mm	1kW	220VAC	6.23A	3000RPM	3.18N.m	H2T1030BS26 H2T1030BE26
	1kW	380VAC	3.60A	3000RPM	3.18N.m	H4T1030BS26 H4T1030BE26
	1.5kW	220VAC	8.55A	3000RPM	4.9N.m	H2T1530BS26 H2T1530BE26
	1.5kW	380VAC	4.95A	3000RPM	4.9N.m	H4T1530BS26 H4T1530BE26
	2kW	380VAC	6.38A	3000RPM	6.37N.m	H4T2030BS26 H4T2030BE26
	2.5kW	380VAC	8.01A	3000RPM	7.96N.m	H4T2530BS26 H4T2530BE26
130mm	850W	220VAC	5.72A	1500RPM	5.39N.m	H2T0915BS26 H2T0915BE26
	850W	380VAC	3.16A	1500RPM	5.39N.m	H4T0915BS26 H4T0915BE26
	1.3kW	220VAC	8.61A	1500RPM	8.34N.m	H2T1315BS26 H2T1315BE26
	1.3kW	380VAC	4.97A	1500RPM	8.34N.m	H4T1315BS26 H4T1315BE26
	1.8kW	380VAC	7.03A	1500RPM	11.5N.m	H4T1815BS26 H4T1815BE26
180mm	2.9kW	380VAC	10.26A	1500RPM	18.5N.m	H4T2915BS26 H4T2915BE26
	4.4kW	380VAC	15.6A	1500RPM	28.4N.m	H4T4415BS26 H4T4415BE26
	5.5kW	380VAC	19.77A	1500RPM	35N.m	H4T5515BS26 H4T5515BE26
	7.5kW	380VAC	26.55A	1500RPM	48N.m	H4T7515BS26 H4T7515BE26

If you want to know more about our servo motors, please click the "Get a quote" button to get more information.

Supporting relationship between the drive and motor

220V

	SIZE A			SIZE B
Servo drive JSS730F-	Single-phase 220V
	2T1R6	2T2R8	2T5R5
Servo motor JSSMK1-	100W	400W	750W
	H2T0130BN16 H2T0130BN26 H2T0130BC16 H2T0130BC26	H2T0430BS16 H2T0430BS26 H2T0430BE16 H2T0430BE26	H2T0830BS16 H2T0830BS26 H2T0830BE16 H2T0830BE26
	200W
	H2T0230BS16 H2T0230BS26 H2T0230BE16 H2T0230BE26

	SIZE C			SIZE D
Servo drive JSS730F-	Single-phase / Three-phase 220V
	2T7R6		2T012
Servo motor JSSMK1-	850W		1.3kW
	H2T0915BE16 H2T0915BE26 H2T0915BS16 H2T0915BS26		H2T1315BE16 H2T1315BE26 H2T1315BS16 H2T1315BS26
	1kW		1.5kW
	H2T1030BE16-80 H2T1030BE26-80 H2T1030BS16-80 H2T1030BS26-80	H2T1030BE16 H2T1030BE26 H2T1030BS16 H2T1030BS26	H2T1530BE16 H2T1530BE26 H2T1530BS16 H2T1530BS26

380V

	SIZE C		SIZE D
Servo drive JSS730F-	Three-phase 380V
Servo drive JSS730F-	4T3R5	4T5R4	4T8R4	4T012
Servo motor JSSMK1-	850W	1kW	1.8kW	2.9kW
	H4T0915BE16 H4T0915BE26 H4T0915BS16 H4T0915BS26	H4T1030BE16 H4T1030BE26 H4T1030BS16 H4T1030BS26	H4T1815BE16 H4T1815BE26 H4T1815BS16 H4T1815BS26	H4T2915BE16 H4T2915BE26 H4T2915BS16 H4T2915BS26
		1.3kW	2kW
		H4T1315BE16 H4T1315BE26 H4T1315BS16 H4T1315BS26	H4T2030BE16 H4T2030BE26 H4T2030BS16 H4T2030BS26
		1.5kW	2.5kW
		H4T1530BE16 H4T1530BE26 H4T1530BS16 H4T1530BS26	H4T2530BE16 H4T2530BE26 H4T2530BS16 H4T2530BS26

	SIZE E
Servo drive JSS730F-	Three-phase 380V
Servo drive JSS730F-	4T017	4T021	4T026
Servo motor JSSMK1-	4.4kW	5.5kW	7.5kW
Servo motor JSSMK1-	H4T4415BE16 H4T4415BE26 H4T4415BS16 H4T4415BS26	H4T5515BE16 H4T5515BE26 H4T5515BS16 H4T5515BS26	H4T7515BE16 H4T7515BE26 H4T7515BS16 H4T7515BS26

Please click the "Get a quote" button to tell us your requirements.

Certificate

We have passed the ISO-9001 quality certification system and obtained a number of application patents. Our products have international certifications such as CE and ROHS.
