JSS760F 23-bit absolute encoder servo motor and PROFINET servo drive

The JSS760F series is a new generation of AC servo drive from JSS MOTOR, with a power range of 50W to 7.5KW and uses PROFINET commands. The JSSMK1 servo motor used with it has a frame size of 40/60/80/100/130/180mm, provides a variety of inertia and speed options, and can be equipped with different encoders as needed, with better performance.

Power range from 50W to 7.5KW
3kHz speed loop bandwidth
23-bit absolute encoder
Standard PROFIDRIVE protocol, mainstream PROFINET communication PLC
Built-in dynamic brake function
Support to the STO safety torque stop function (optional)

Description

Changzhou Jinsanshi Mechatronics Co., Ltd.

+86-13401517369

[email protected]

8613401517369

Description

Features

Excellent performance

	High response: 3kHz speed loop bandwidth High accuracy: 23-bit absolute encoder High dynamics: DSC mode High adaptability: standard PROFIDRIVE protocol, mainstream PROFINET communication PLCs
	Integrated communication ports, enhancing wiring efficiency Compact design, making the product be able to be installed in narrow space Easy to connect and use, with serial or USB commissioning cable to improve commissioning efficiency Support to PROFINET bus servo parameter copy for quick and easy access
	Built-in dynamic brake function Support to the STO safety torque stop function (optional) Optional high-protection model to cope with harsh application environments

JSS760F Servo Drive Technical Data

Rated Data

Single-phase 220V servo drive

Item	SIZE-A		SIZE-B
Power	0.2 kW	0.4 kW	0.75 kW
Drive model JSS760F	2T1R6	2T2R8	2T5R5
Continuous output current (Arms)	1.6	2.8	5.5
Maximum output current (Arms)	5.8	10.1	16.9
Main circuit power supply	Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Powered up by the bus, sharing one power supply and rectification part with the main circuit
Braking capability	External braking		Built-in braking resistor

Single-phase/Three-phase 220V servo drive

Item	SIZE-C	SIZE-D
Power	1.0 kW	1.5 kW
Drive model JSS760F	2T7R6	2T012
Continuous output current (Arms)	7.6	11.6
Maximum output current (Arms)	23	32
Main circuit power supply	Single-phase/three-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 200–240 VAC, –10% to +10%, 50/60 Hz
Braking capability	Built-in braking resistor

Three-phase 380V servo drive

Item	SIZE-C		SIZE-D		SIZE-E
Power	0.85 kW	1.5 kW	2.0 kW	3.0 kW	5.0 kW	6.0 kW	7.5 kW
Drive model JSS760F	4T3R5	4T5R4	4T8R4	4T012	4T017	4T021	4T026
Continuous output current (Arms)	3.5	5.4	8.4	11.9	16.5	20.8	25.7
Maximum output current (Arms)	11	14	20	29.8	42	55	65
Main circuit power supply	Three-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Control circuit power supply	Single-phase 380–440 VAC, –10% to +10%, 50/60 Hz
Braking capability	Built-in braking resistor

JSS760F Servo Drive Sizes (unit: mm)

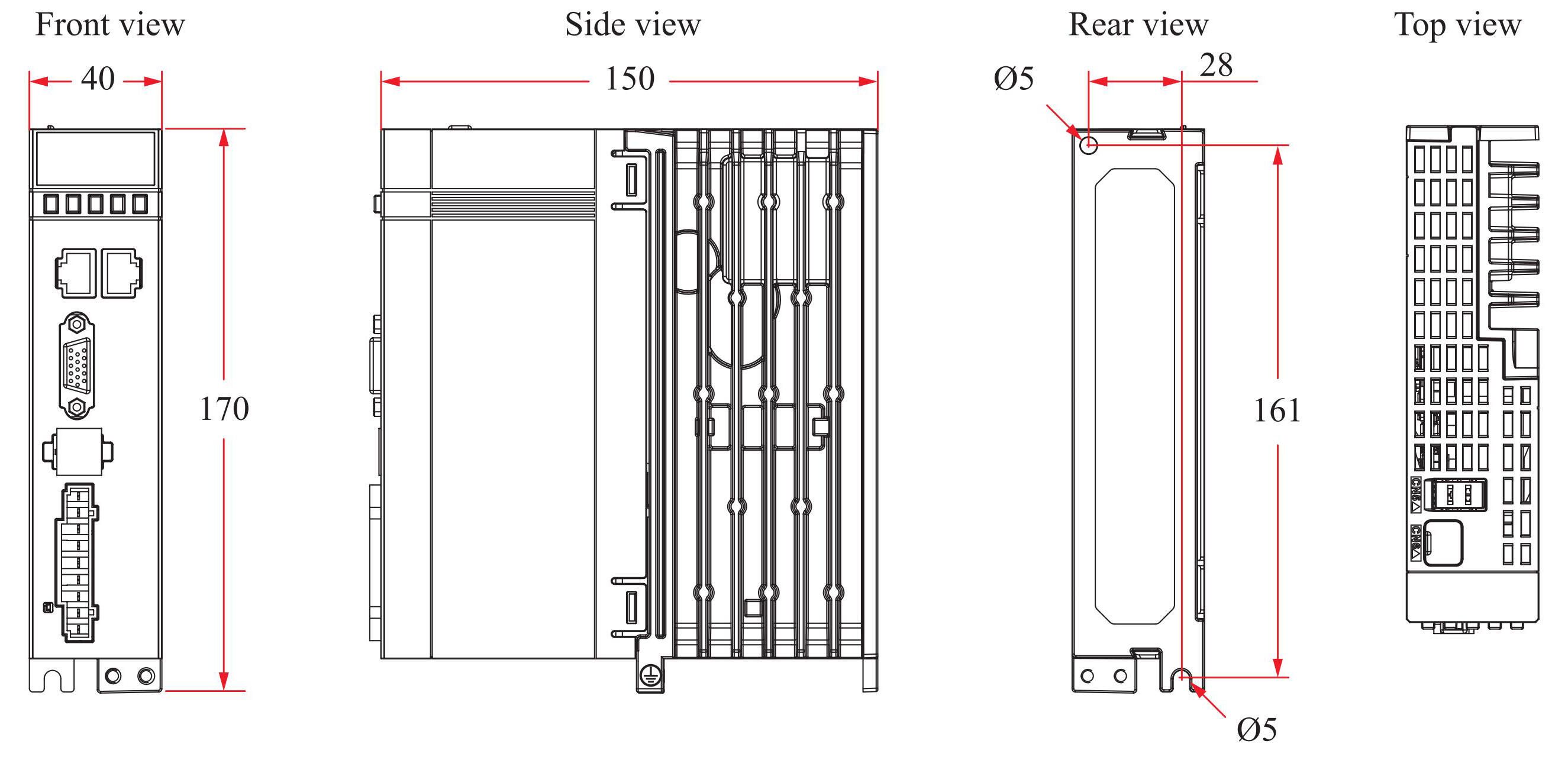

Size A

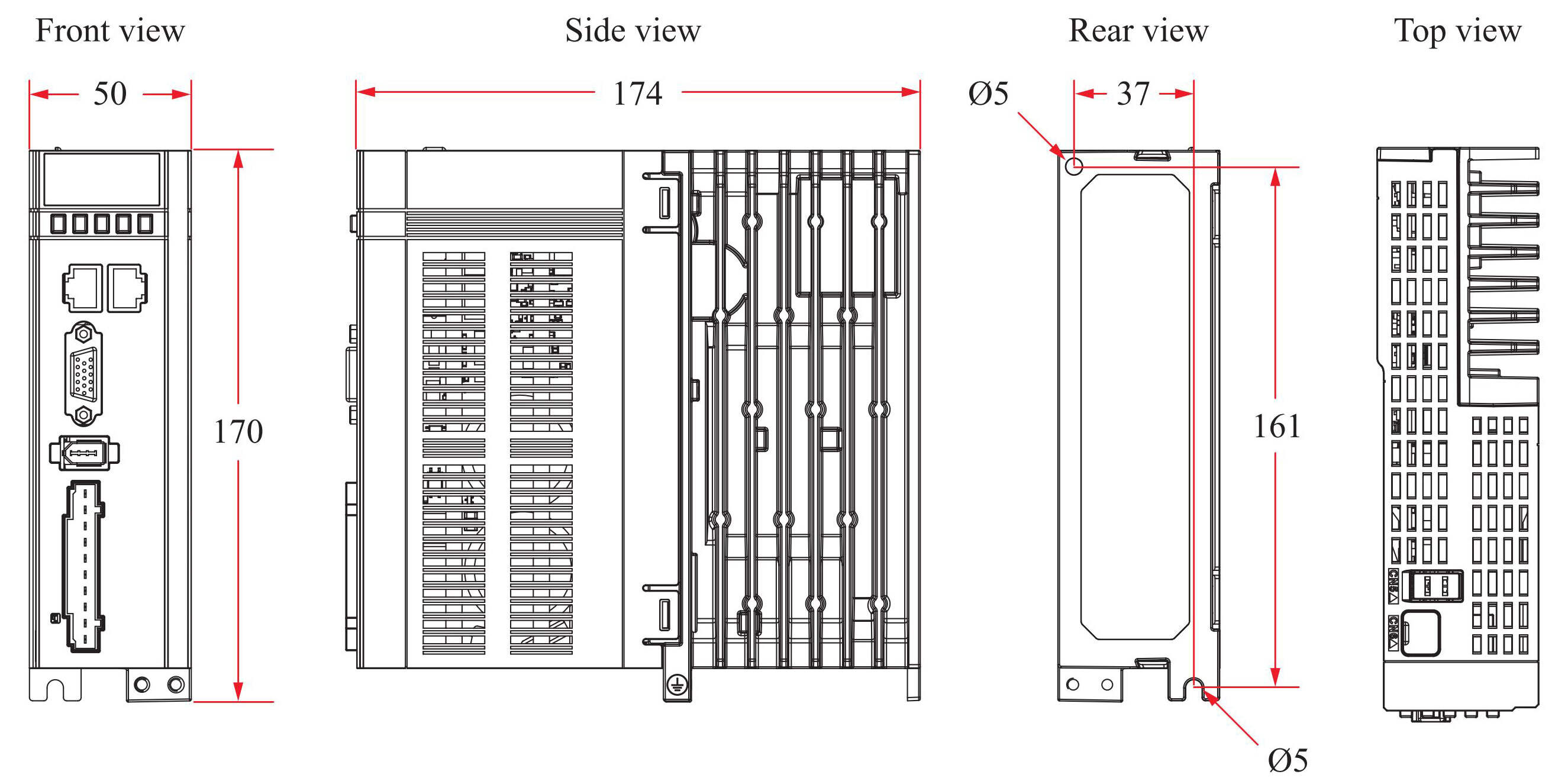

Size B

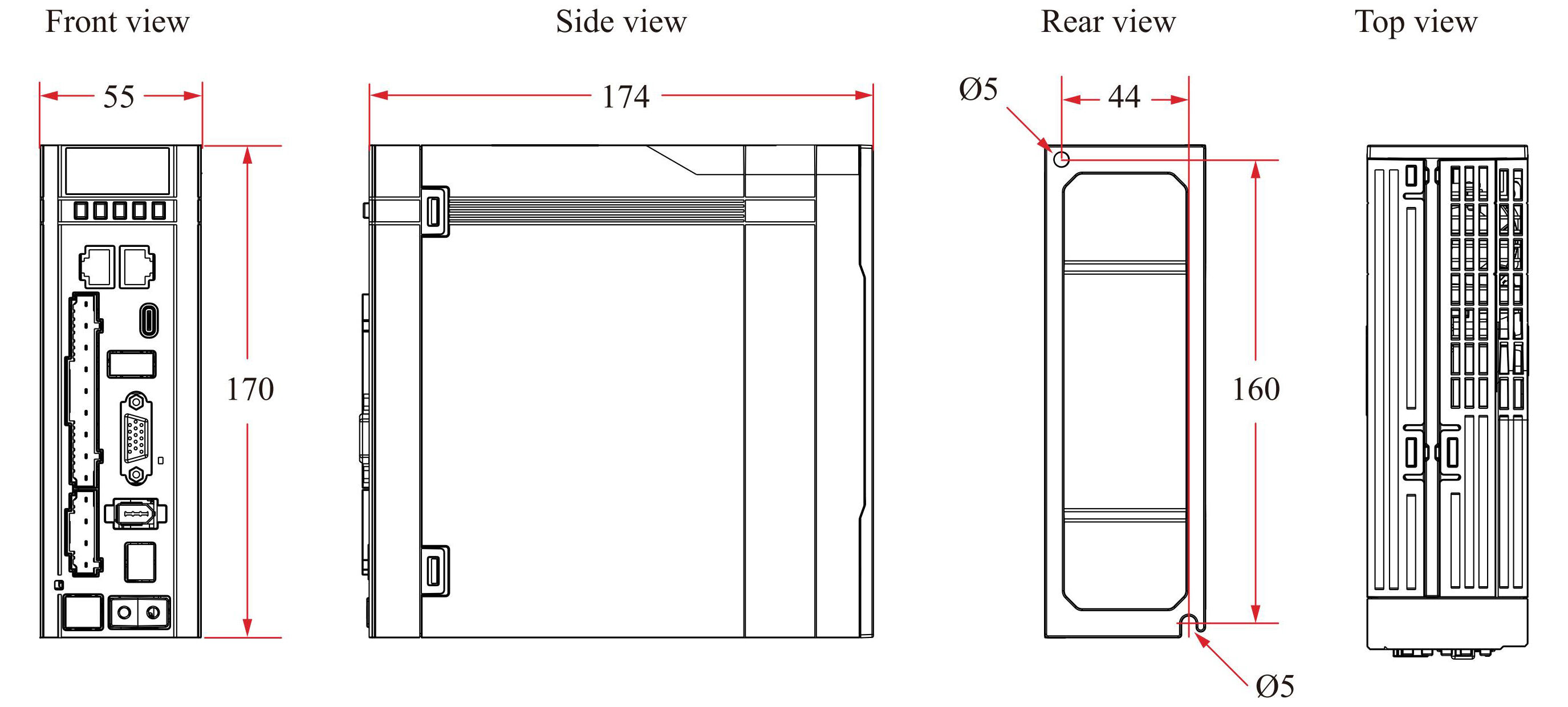

Size C

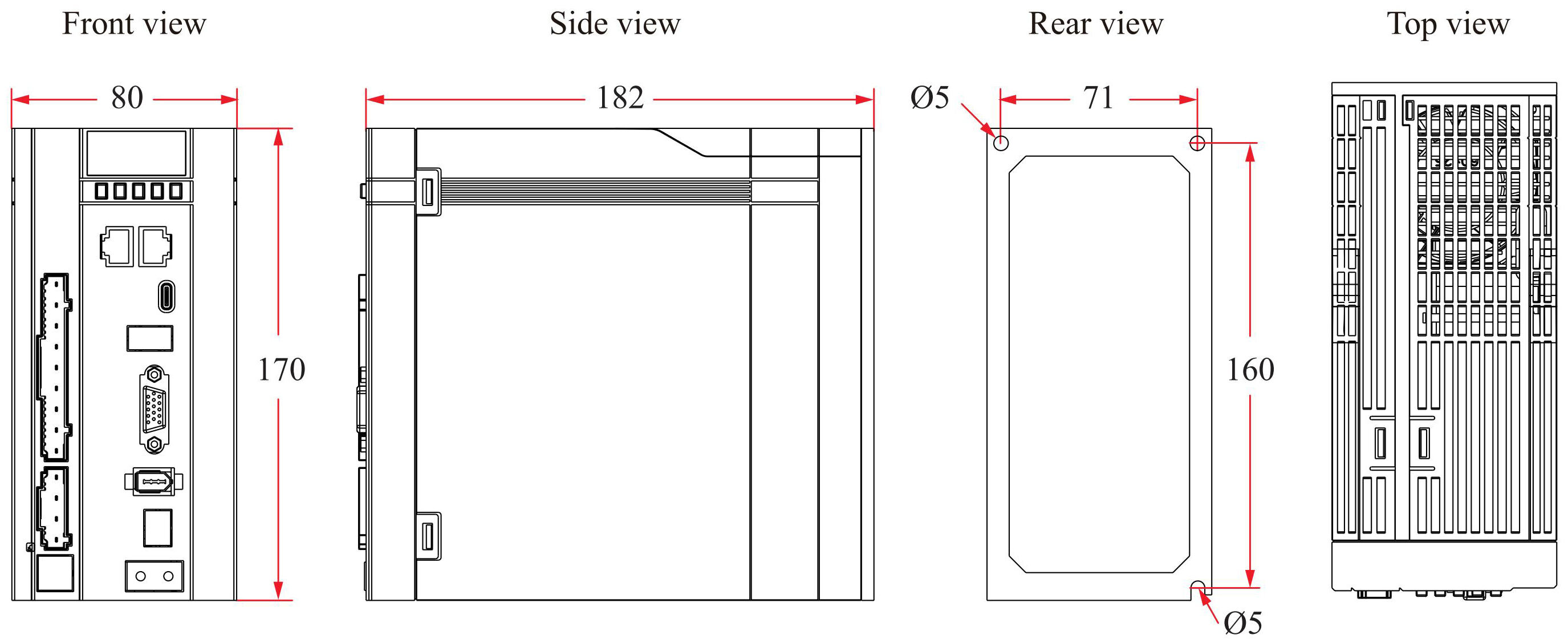

Size D

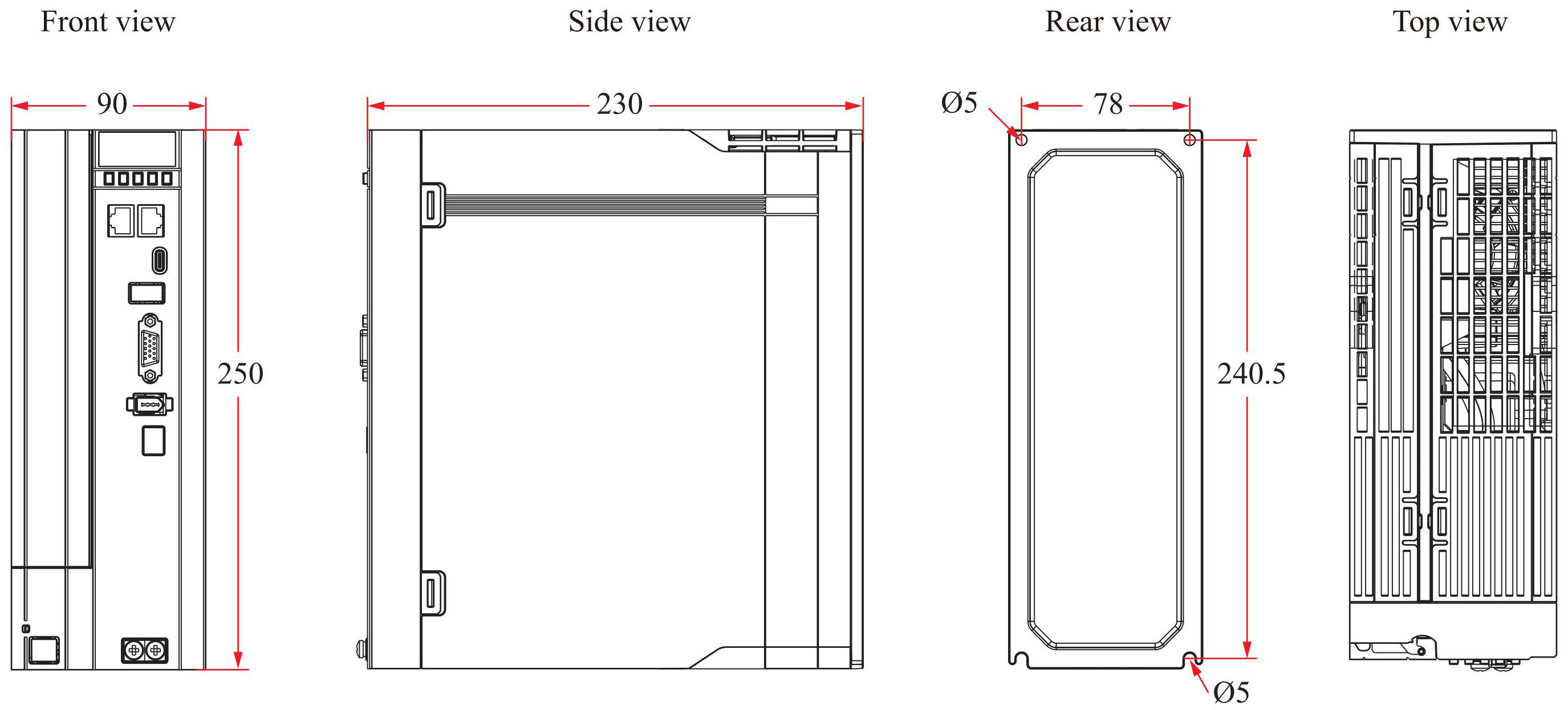

Size E

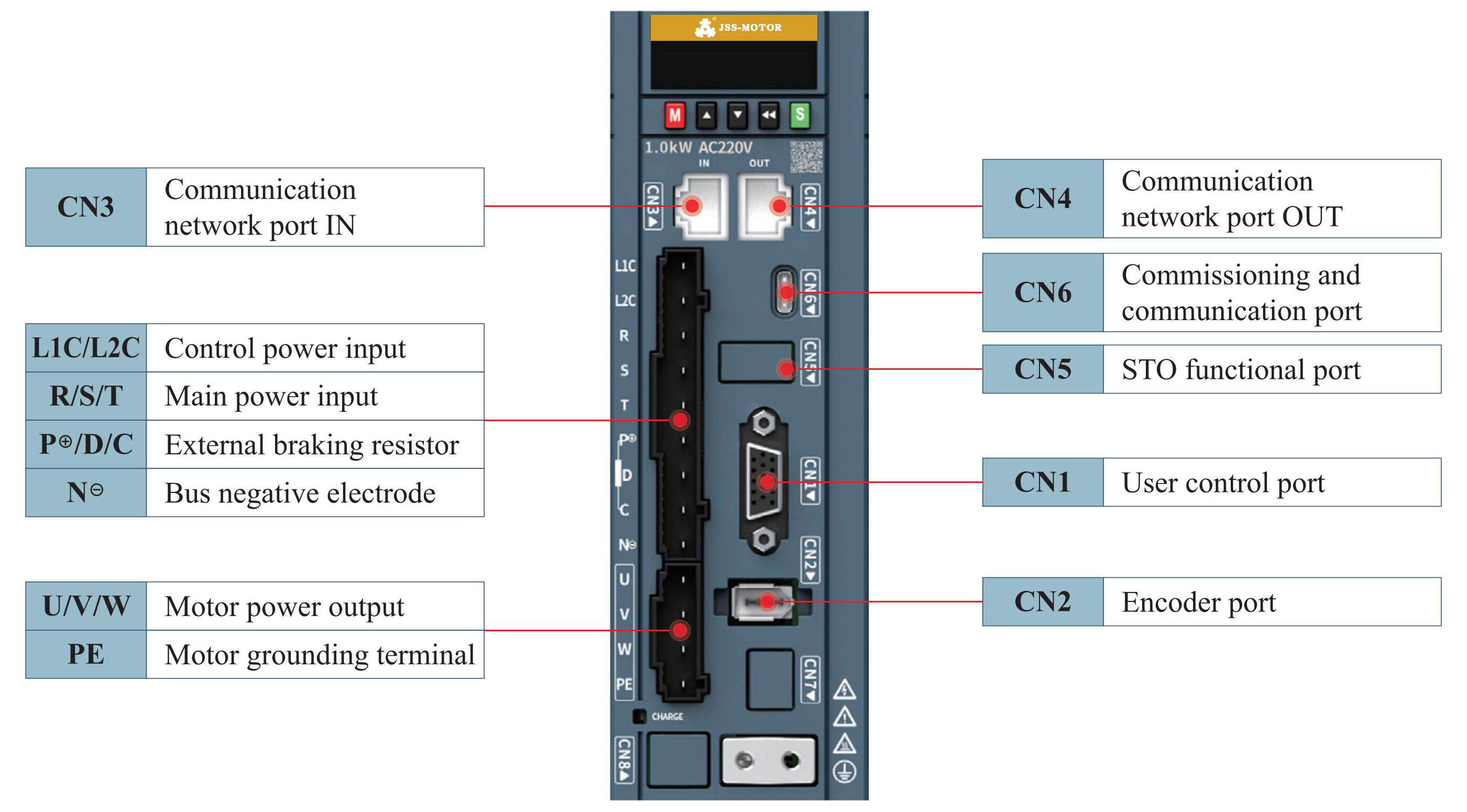

JSS760F Port Description
Note: Take SIZE C model as an example to introduce the distribution of ports. If there are differences in the layout of other models, please take the physical object as the standard.

JSS760F System Topology
Note: Take SIZE C model as an example to introduce the distribution of system topology. If there are differences in the layout of other models, please take the physical object as the standard.

Servo Motor Technical Data

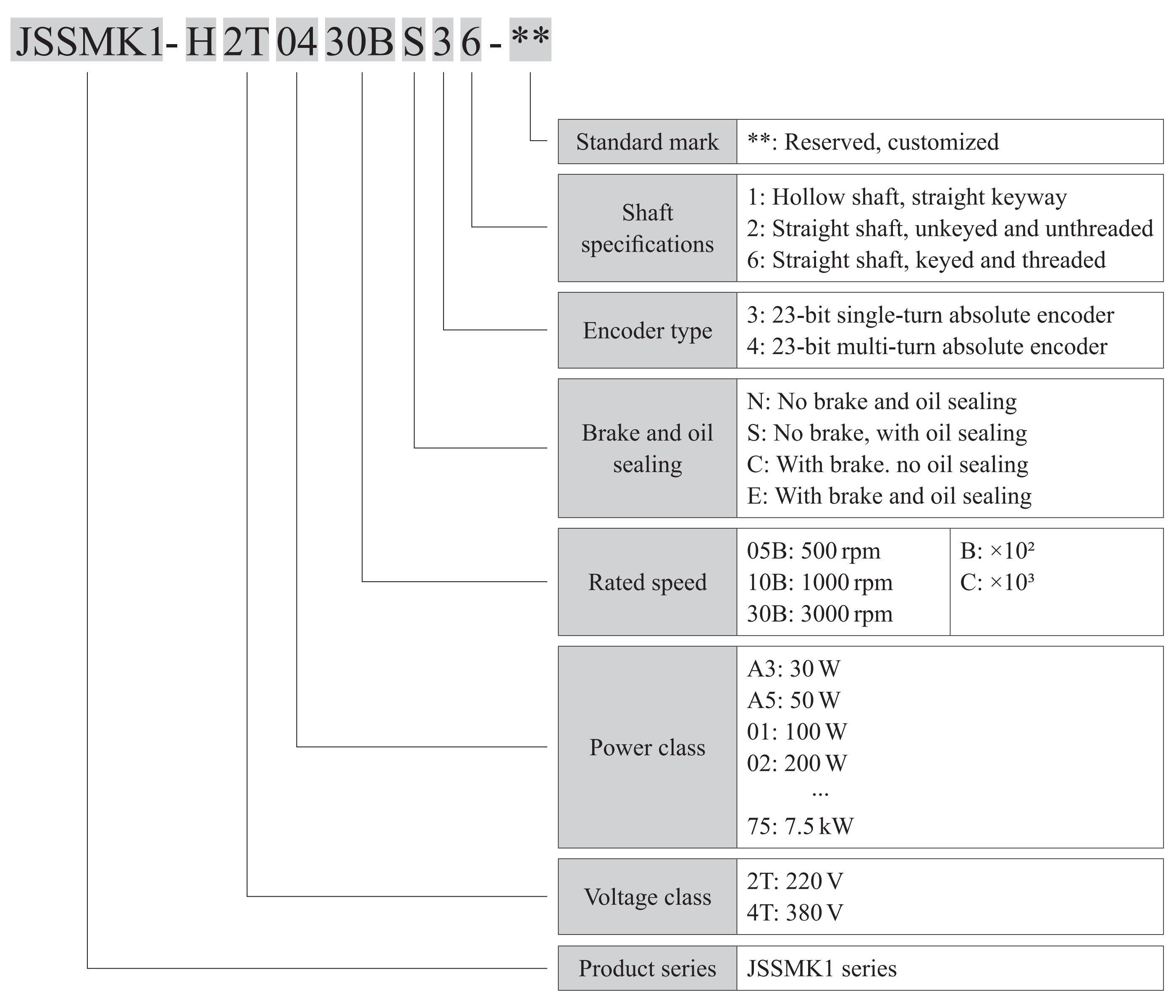

Servo Motor Model Description

Servo Motor Rated Data

Frame Size	Rated Power	Rated Voltage	Rated current	Rated Speed	Rated Torque	Motor Type (JSSMK1-XXXXXXXXXX)	Encoder
40mm	100W	220VAC	1.1A	3000RPM	0.32N.m	H2T0330BN46 H2T0130BC46	23-bit Multi-turn Optical Absolute Encoder
60mm	200W	220VAC	1.29A	3000RPM	0.64N.m	H2T0230BS46 H2T0230BE46
60mm	400W	220VAC	2.51A	3000RPM	1.27N.m	H2T0430BS46 H2T0430BE46
80mm	750W	220VAC	4.60A	3000RPM	2.39N.m	H2T0830BS46 H2T0830BE46
80mm	1kW	220VAC	6.30A	3000RPM	3.18N.m	H2T1030BS46-80 H2T1030BE46-80
100mm	1kW	220VAC	6.40A	3000RPM	3.18N.m	H2T1030BS46 H2T1030BE46
	1kW	380VAC	3.8A	3000RPM	3.18N.m	H4T1030BS46 H4T1030BE46
	1.5kW	220VAC	8.2A	3000RPM	4.9N.m	H2T1530BS46 H2T1530BE46
	1.5kW	380VAC	5A	3000RPM	4.9N.m	H4T1530BS46 H4T1530BE46
	2kW	380VAC	6.5A	3000RPM	6.36N.m	H4T2030BS46 H4T2030BE46
	2.5kW	380VAC	7.8A	3000RPM	7.96N.m	H4T2530BS46 H4T2530BE46
130mm	3kW	380VAC	9.0A	3000RPM	9.6N.m	H4T3030BS46 H4T3030BE46
	850W	220VAC	6.6A	1500RPM	5.4N.m	H2T0915BS46 H2T0915BE46
	850W	380VAC	3.5A	1500RPM	5.4N.m	H4T0915BS46 H4T0915BE46
	1.3kW	220VAC	8.5A	1500RPM	8.34N.m	H2T1315BS46 H2T1315BE46
	1.3kW	380VAC	5.2A	1500RPM	8.34N.m	H4T1315BS46 H4T1315BE46
	1.8kW	380VAC	6.8A	1500RPM	11.5N.m	H4T1815BS46 H4T1815BE46
	4kW	380VAC	12.0A	3000RPM	12.7N.m	H4T4030BS46 H4T4030BE46
	5kW	380VAC	14.7A	3000RPM	15.9N.m	H4T5030BS46 H4T5030BE46
180mm	2.9kW	380VAC	11.8A	1500RPM	18.6N.m	H4T2915BS46 H4T2915BE46
	4.4kW	380VAC	15.7A	1500RPM	28.4N.m	H4T4415BS46 H4T4415BE46
	5.5kW	380VAC	20.6A	1500RPM	35N.m	H4T5515BS46 H4T5515BE46
	7.5kW	380VAC	25.7A	1500RPM	48N.m	H4T7515BS46 H4T7515BE46

If you want to know more about our servo motors, please click the "Get a quote" button to get more information.

Supporting relationship between the drive and motor

220V

	SIZE A			SIZE B
Servo drive JSS760F-	Single-phase 220V
	2T1R6	2T2R8	2T5R5
Servo motor JSSMK1-	100W	400W	750W
	H2T0130BN36 H2T0130BN46 H2T0130BC36 H2T0130BC46	H2T0430BS36 H2T0430BS46 H2T0430BE36 H2T0430BE46	H2T0830BS36 H2T0830BS46 H2T0830BE36 H2T0830BE46
	200W
	H2T0230BS36 H2T0230BS46 H2T0230BE36 H2T0230BE46

	SIZE C			SIZE D
Servo drive JSS760F-	Single-phase / Three-phase 220V
	2T7R6		2T012
Servo motor JSSMK1-	850W		1.3kW
	H2T0915BE36 H2T0915BE46 H2T0915BS36 H2T0915BS46		H2T1315BE36 H2T1315BE46 H2T1315BS36 H2T1315BS46
	1kW		1.5kW
	H2T1030BE36-80 H2T1030BE46-80 H2T1030BS36-80 H2T1030BS46-80	H2T1030BE36 H2T1030BE46 H2T1030BS36 H2T1030BS46	H2T1530BE36 H2T1530BE46 H2T1530BS36 H2T1530BS46

380V

	SIZE C		SIZE D
Servo drive JSS760F-	Three-phase 380V
Servo drive JSS760F-	4T3R5	4T5R4	4T8R4	4T012
Servo motor JSSMK1-	850W	1kW	1.8kW	2.9kW
	H4T0915BE36 H4T0915BE46 H4T0915BS36 H4T0915BS46	H4T1030BE36 H4T1030BE46 H4T1030BS36 H4T1030BS46	H4T1815BE36 H4T1815BE46 H4T1815BS36 H4T1815BS46	H4T2915BE36 H4T2915BE46 H4T2915BS36 H4T2915BS46
		1.3kW	2kW	3kW
		H4T1315BE36 H4T1315BE46 H4T1315BS36 H4T1315BS46	H4T2030BE36 H4T2030BE46 H4T2030BS36 H4T2030BS46	H4T3030BE36 H4T3030BE46 H4T3030BS36 H4T3030BS46
		1.5kW	2.5kW
		H4T1530BE36 H4T1530BE46 H4T1530BS36 H4T1530BS46	H4T2530BE36 H4T2530BE46 H4T2530BS36 H4T2530BS46

	SIZE E
Servo drive JSS760F-	Three-phase 380V
	4T017	4T021	4T026
Servo motor JSSMK1-	4kW	5.5kW	7.5kW
	H4T4030BE36 H4T4030BE46 H4T4030BS36 H4T4030BS46	H4T5515BE36 H4T5515BE46 H4T5515BS36 H4T5515BS46	H4T7515BE36 H4T7515BE46 H4T7515BS36 H4T7515BS46
	4.4kW
	H4T4415BE36 H4T4415BE46 H4T4415BS36 H4T4415BS46
	5kW
	H4T5030BE36 H4T5030BE46 H4T5030BS36 H4T5030BS46

Please click the "Get a quote" button to tell us your requirements.

Certificate

We have passed the ISO-9001 quality certification system and obtained a number of application patents. Our products have international certifications such as CE and ROHS.
